Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI RM 250 SUZUKI RM250 M (E02,E04,E24) SUZUKI (VIN: RJ15A) 11 - TRANSMISSION

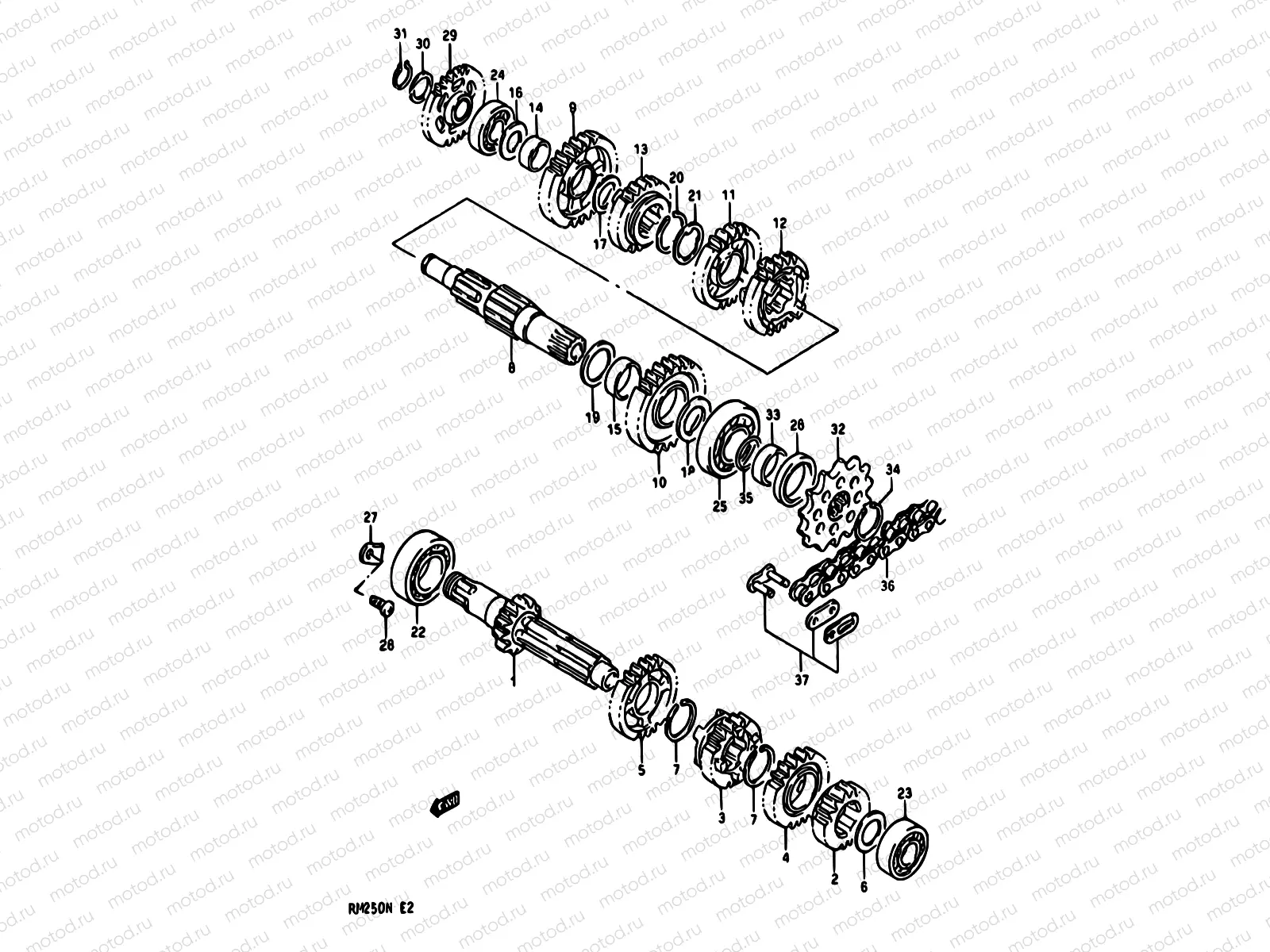

11 - TRANSMISSION

11 - TRANSMISSION
Например: 24121-28C04
1
24121-28C04
Shaft,counter (nt:13)
1
09140-18013
Гайка
7 040 ₽/шт
1
24251-28C01
Gear,5th drive
1
24231-28C21
Gear,3rd drive
2
24221-28C10
Gear,2nd drive
3
24231-28C21
Gear,3rd drive
3
24251-28C01
Gear,5th drive
3
09140-18013
Гайка
7 040 ₽/шт
3
24121-28C04
Shaft,counter (nt:13)
4
24241-28C20
Gear,4th drive
5
24251-28C01
Gear,5th drive
5
24231-28C21
Gear,3rd drive
5
24121-28C04
Shaft,counter (nt:13)
5
09140-18013
Гайка
7 040 ₽/шт
6
09181-17223
Шайба
1 800 ₽/шт
7
09380-25010
КЛИПС
210 ₽/шт
8
24131-28C03
Shaft,drive
9
24311-28C02
Gear,1st driven
10
24321-28C10
Gear,2nd driven
11
24331-28C03
Gear,3rd.driven
12
24341-28C20
Gear,4th driven
13
24351-28C20
Gear,5th driven
14
09300-20037
BUSH(20X24X10)
8 990 ₽/шт
15
09300-25031
BUSH(25X28X10)
12 630 ₽/шт
16
09181-17223
Шайба
1 800 ₽/шт
17
09181-20195
Шайба
194 ₽/шт
18
09181-22240
SHIM(22X34X1.5)
2 740 ₽/шт
19
09181-25167
Шайба
194 ₽/шт
20
09380-25010
КЛИПС
210 ₽/шт
21
09167-25012
Шайба
1 840 ₽/шт
22
09262-25003
Подшипник B1 25X52X15
1 360 ₽/шт
23
09262-17023
ПОДШИПНИК
937 ₽/шт
24
09262-17023
ПОДШИПНИК
937 ₽/шт
25
09262-22023
Roulement (LH)
26
09283-28020
SEAL,OIL(28X38X6)
1 244 ₽/шт
27
24741-21A00
RETAINER
170 ₽/шт
28
02112-06127
Болт
81 ₽/шт
28
02122-06127
Болт
85 ₽/шт
29
26260-05D00
Gear,kick start
30
09181-17130
SHIM(17X24X0.5)
1 800 ₽/шт
31
09380-17001
CIRCLIP
162 ₽/шт
32
27511-37F00
SPROCKET,ENGINE(NT:13)
3 011 ₽/шт
32
27511-47D00
SPROCKET(NT:14)
3 030 ₽/шт
32
27511-14320
Sprocket,engine
33
27531-28C00
SPACER,ENGINE SPROCKET
1 649 ₽/шт
34
09380-22006
КЛИПС
194 ₽/шт
35
09280-21010
SPROCKET O RING SEAL
114 ₽/шт
36
27600-43D02-116
CHAIN,DRIVE (DID520DMA4 SDH)
20 485 ₽/шт
37
