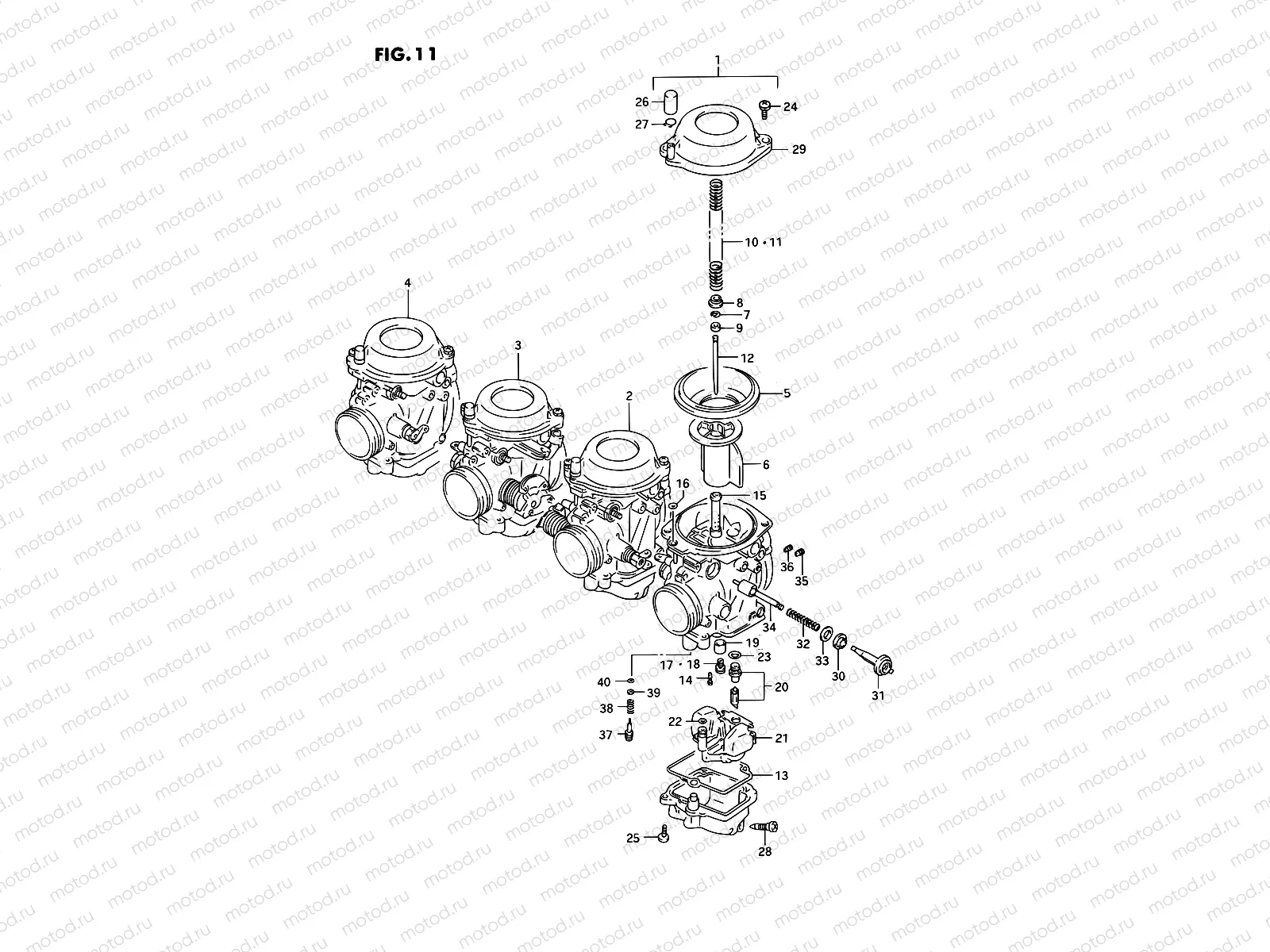

11 - CARBURETOR (MODEL N/P)

11 - CARBURETOR (MODEL N/P)

Например: 13201-17E60

1

13201-17E60

Carburettor (LH)

1

13201-17EA0

Carburettor (LH)

1

13201-17E70

Carburettor (LH)

1

13201-17E20

Carburettor (LH)

1

13201-17E90

Carburettor (LH)

2

13202-17E60

Carburetor assy, ml

2

13202-17EA0

Carburator

2

13202-17E70

Carburetor assy, ml

2

13202-17E20

Carburetor assy, ml

2

13202-17E90

Carburetor assy, ml

3

13203-17E60

Carburetor assy, mr

3

13203-17EE0

Carburetor assy, mr

3

13203-17E70

Carburetor assy, mr

3

13203-17E20

Carburetor assy, mr

3

13203-17E90

Carburetor assy, mr

4

13204-17E60

Carburettor (RH)

4

13204-17EA0

Carburettor (RH)

4

13204-17E70

Carburettor (RH)

4

13204-17E20

Carburettor (RH)

4

13204-17E90

Carburettor (RH)

5

13507-07D02

iaphragm

3 485 ₽/шт

6

13501-17D00

Valve,piston

7

13394-31210

CLIP,NEEDLE

238 ₽/шт

8

13331-12D00

RING

348 ₽/шт

9

13387-07D00

RING

459 ₽/шт

10

13417-07D10

Пружина

551 ₽/шт

11

13417-17D00

Пружина

655 ₽/шт

12

13383-17E00

Needle,jet (6ZD16-3)

13

13258-44B00

Прокладка крышки поплавковой камеры

767 ₽/шт

14

09492-35008

Жиклер

594 ₽/шт

15

09494-00751

Jet,needle,o-8

16

13278-02340

O RING

162 ₽/шт

17

09491-22015

JET,MAIN(112.5)

790 ₽/шт

17

09491-23017

JET,MAIN(117.5)

790 ₽/шт

18

09491-23011

JET,MAIN(115)

1 777 ₽/шт

19

13331-07D00

RING

1 309 ₽/шт

20

13370-46E21

Valve Assy,needle(Ni)

13 005 ₽/шт

21

13240-17E00

Float assy

22

13374-46710

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

275 ₽/шт

23

13374-35C00

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

275 ₽/шт

24

02112-7516A

Болт

102 ₽/шт

25

02112-0516B

Болт

1 090 ₽/шт

26

13508-17C00

КОЛПАЧОК

1 020 ₽/шт

27

13671-05A40

ХОМУТ

170 ₽/шт

28

13247-02340

Заглушка дренажная

258 ₽/шт

29

13502-17D00

COVER,DIAPHRAGM

6 684 ₽/шт

29

13502-17E10

.cover, diaphragm

29

13502-17E20

COVER,DIAPHRAGM

4 457 ₽/шт

30

13418-17C01

ap,starter

323 ₽/шт

31

13418-17C10

HOLDER,GUIDE

954 ₽/шт

32

13417-26D00

Пружина

238 ₽/шт

33

13432-47090

Шайба

156 ₽/шт

34

13411-05320

PLUNGER ASSY

1 396 ₽/шт

35

09493-50004

JET,AIR(0.5)

938 ₽/шт

36

09493-25003

JET,AIR(1.25)

845 ₽/шт

36

09493-26004

Жиклер воздушный

1 126 ₽/шт

37

13279-47070

Винт топливный

884 ₽/шт

38

13268-47070

Пружина

272 ₽/шт

39

13291-29900

Шайба

162 ₽/шт

40

13295-29901

O-Ring, Pilot Air Screw

210 ₽/шт
