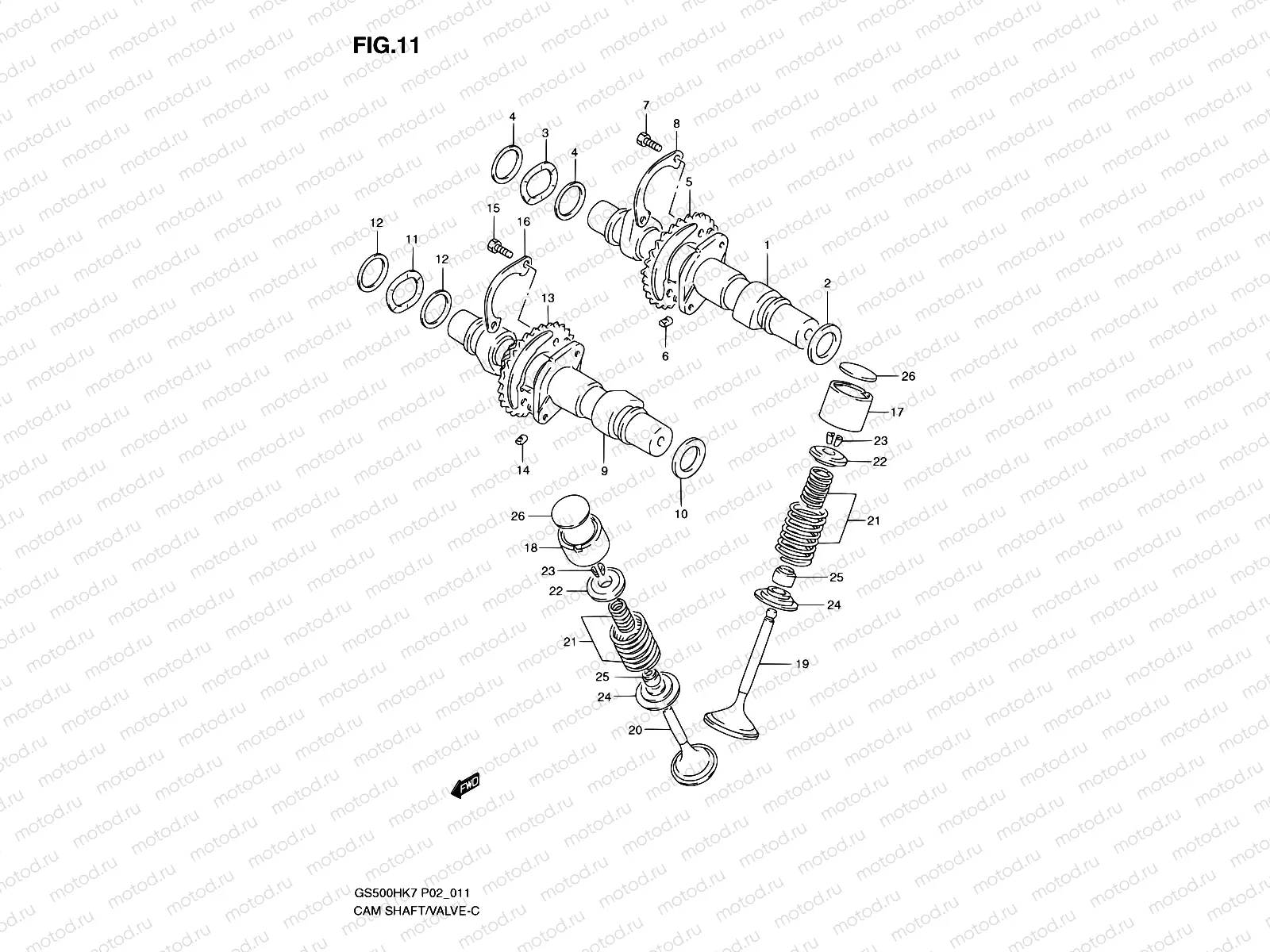

11 - CAMSHAFT-VALVE

11 - CAMSHAFT-VALVE
Например: 12710-01831
1
12710-01831
CAMSHAFT SET,INTAKE
17 439 ₽/шт
2
09181-22167
SHIM,22X30X1
194 ₽/шт
2
09160-22074
Шайба
3 830 ₽/шт
2
09160-22075
Шайба
3 830 ₽/шт
2
09160-22076
Шайба
3 830 ₽/шт
3
09164-22012
Шайба
2 030 ₽/шт
4
09181-22132
Шайба
1 840 ₽/шт
5
12740-45042
SPROCKET,CAMSHAFT INTAKE
4 653 ₽/шт
6
12748-44000
PIN,SPROCKET
285 ₽/шт
7
09111-06027
BOLT(6X12.5)
900 ₽/шт
8
12747-44001
Шайба
258 ₽/шт
9
12720-01841
CAMSHAFT SET,EXHAUST
18 299 ₽/шт
10
09181-22167
SHIM,22X30X1
194 ₽/шт
10
09160-22074
Шайба
3 830 ₽/шт
10
09160-22075
Шайба
3 830 ₽/шт
10
09160-22076
Шайба
3 830 ₽/шт
11
09164-22012
Шайба
2 030 ₽/шт
12
09181-22132
Шайба
1 840 ₽/шт
13
12750-45041
SPROCKET,EXHAUST CAM(NT:30)
4 731 ₽/шт
14
12748-44000
PIN,SPROCKET
285 ₽/шт
15
09111-06027
BOLT(6X12.5)
900 ₽/шт
16
12747-44001
Шайба
258 ₽/шт
17
12891-15501
TAPPET
3 108 ₽/шт
18
12891-15501
TAPPET
3 108 ₽/шт
19
12911-01D00
Клапан впуска
9 945 ₽/шт
20
12912-01D00
Клапан, выпуска
11 815 ₽/шт
21
12920-44110
SPRING SET,VALVE
931 ₽/шт
22
12931-45001
RETAINER,VALVE SPRING
422 ₽/шт
23
12932-45010
Сухарь
170 ₽/шт
24
12933-45001
Пружина
352 ₽/шт
25
09289-07002
Маслосъемный колпачок
791 ₽/шт
26
12892-45000-215
SHIM,TAPPET(T:2.15)
1 196 ₽/шт
26
12892-45000-220
Шайба регулировочная (T:2.20)
1 196 ₽/шт
26
12892-45000-225
Шайба регулировочная (T:2.20)
1 196 ₽/шт
26
12892-45000-230
Шайба кулачка (T:2.30)
1 196 ₽/шт
26
12892-45000-235
Шайба кулачка (T:2.30)
1 196 ₽/шт
26
12892-45000-240
Шайба кулачка (T:2.40)
1 196 ₽/шт
26
12892-45000-245
Шайба кулачка (T:2.40)
1 003 ₽/шт
26
12892-45000-250
Шайба кулачка (T:2.50)
1 003 ₽/шт
26
12892-45000-255
Шайба кулачка (T:2.50)
1 003 ₽/шт
26
12892-45000-260
Шайба кулачка (T:2.60)
1 196 ₽/шт
26
12892-45000-265
Шайба кулачка (T:2.60)
1 196 ₽/шт
26
12892-45000-270
Шайба кулачка (T:2.70)
1 196 ₽/шт
26
12892-45000-275
Шайба кулачка (T:2.70)
1 196 ₽/шт
26
12892-45000-280
Шайба кулачка (T:2.80)
1 196 ₽/шт
26
12892-45000-285
Шайба кулачка (T:2.80)
1 196 ₽/шт
26
12892-45000-290
Шайба кулачка (T:2.90)
1 196 ₽/шт
26
12892-45000-295
Шайба кулачка (T:2.90)
1 196 ₽/шт
26
12892-45000-300
Шайба кулачка (T:3.00)
1 196 ₽/шт
26
12892-45000-305
Шайба кулачка (T:3.00)
1 196 ₽/шт
26
12892-45000-310
SHIM,TAPPET(T:3.10)
1 196 ₽/шт
