Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI DL 1000 V-Strom SUZUKI DL1000A L8 V-Strom SUZUKI (VIN: JS1DD124) 108A - CRANKCASE

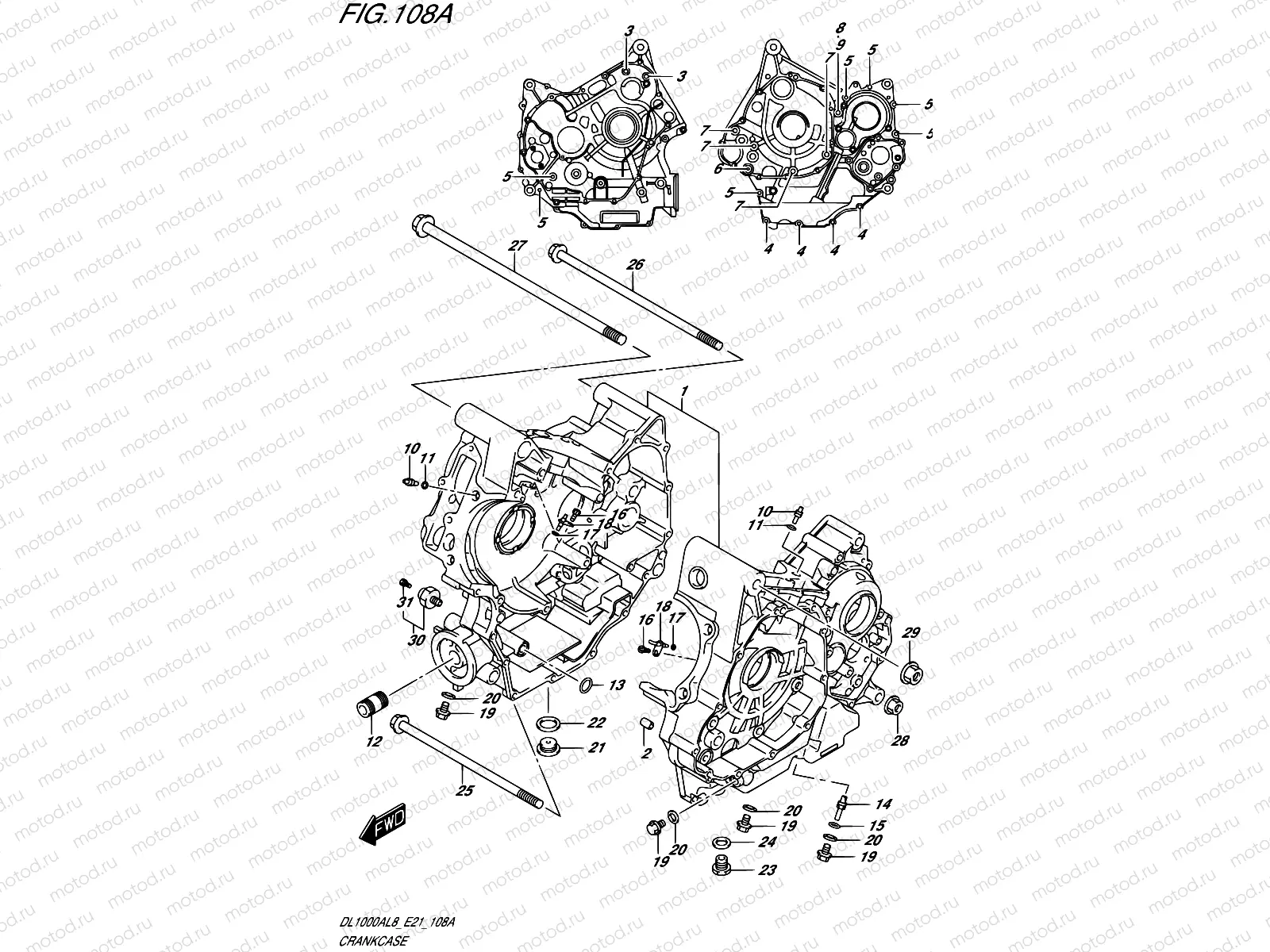

108A - CRANKCASE

108A - CRANKCASE

Например: 11306-06831

1

11306-06831

CRANKCASE SET

302 940 ₽/шт

2

11319-33E00

PIN,CRANKCASE

340 ₽/шт

3

09106-08142

BOLT(8X110)

4 380 ₽/шт

4

01547-0630A

БОЛТ

97 ₽/шт

5

01547-0670A

Болт

1 640 ₽/шт

6

01547-0685A

Болт

1 640 ₽/шт

7

07120-0890A

Болт

3 090 ₽/шт

8

09106-08136

BOLT(8X125)

4 570 ₽/шт

9

08322-0108A

Шайба

85 ₽/шт

10

09493-28010

JET,AIR (14)

845 ₽/шт

11

09280-04004

O RING(D:1.2,ID:4.0)

194 ₽/шт

12

16591-06B01

Болт соединяющий

595 ₽/шт

13

09280-12009

Кольцо уплотнительное

221 ₽/шт

14

09493-20014

JET,OIL GALLERY

845 ₽/шт

15

09280-04004

O RING(D:1.2,ID:4.0)

194 ₽/шт

16

09106-06075

БОЛТ

1 450 ₽/шт

17

09280-05007

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

114 ₽/шт

18

11390-06G10

Жиклер

2 229 ₽/шт

19

01550-0812B

Болт

97 ₽/шт

20

09168-08016

Прокладка

129 ₽/шт

21

09248-16012

ШЛАНГ

289 ₽/шт

22

09168-16002

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

170 ₽/шт

23

09247-14036

Заглушка масляного дренажа

210 ₽/шт

24

09168-14004

Прокладка

129 ₽/шт

25

09103-10205

BOLT(10X225)

9 540 ₽/шт

26

09103-10226

BOLT(10X265)

8 050 ₽/шт

27

09103-12016

BOLT(12X300)

12 670 ₽/шт

28

08319-3110B

Гайка

1 920 ₽/шт

29

09159-12056

Гайка

565 ₽/шт

30

37820-33D10

Датчик давления масла

4 764 ₽/шт

31

37822-33D00

BOLT,OIL PRESSURE SWITCH

339 ₽/шт
