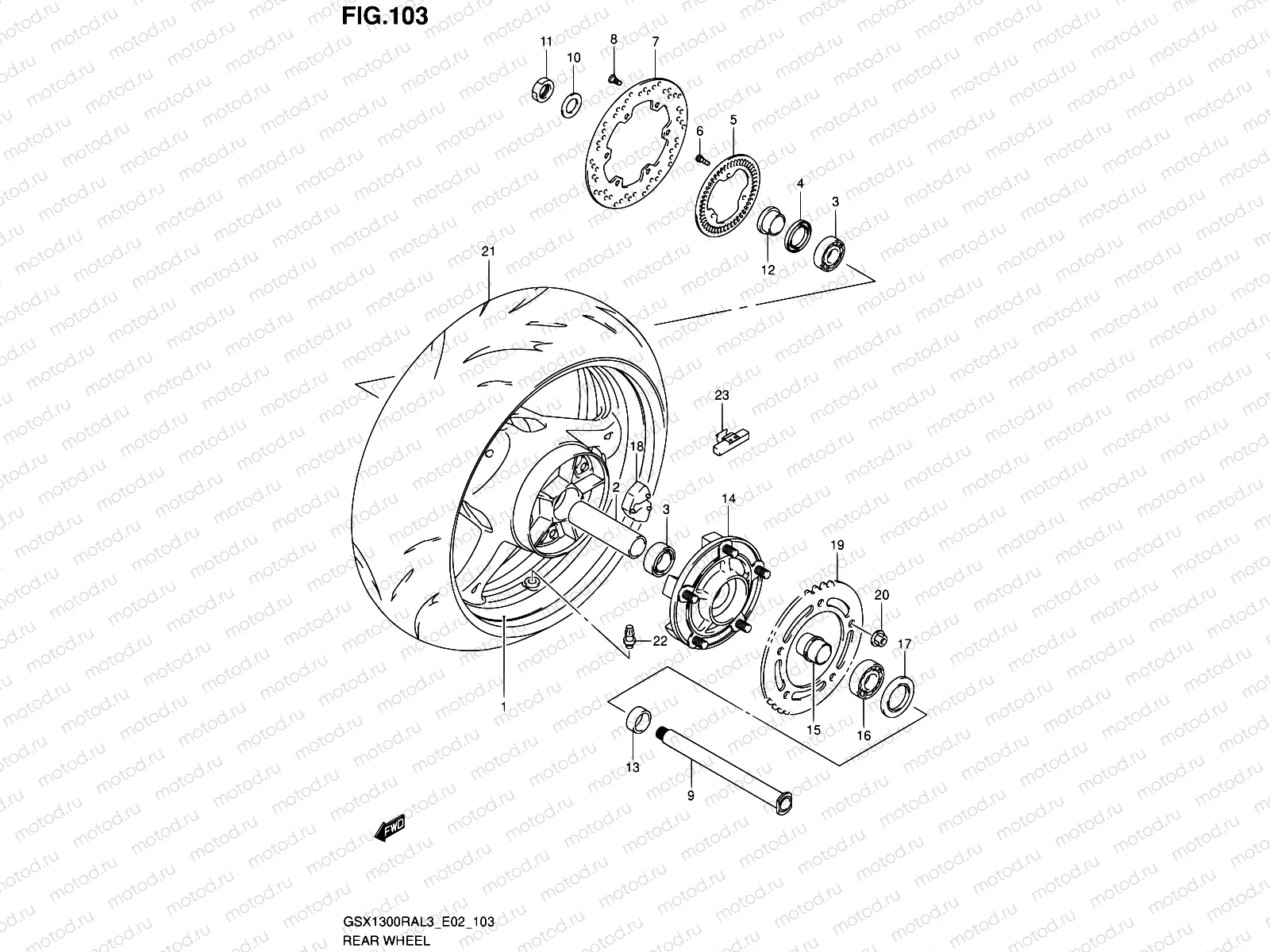

103 - REAR WHEEL (GSX1300RAL3 E02)

103 - REAR WHEEL (GSX1300RAL3 E02)

Например: 64111-15H11-019

1

64111-15H11-019

WHEEL,RR(17M/CXMT6.00)

94 248 ₽/шт

2

64731-40F10

SPACER,RR WHEEL BEARING

3 245 ₽/шт

3

09262-28062

Bearing,rear Wheel Hub

1 530 ₽/шт

4

09284-37002

Seal,rear Wheel Bearing,r

646 ₽/шт

5

64162-23H00

КОЛЬЦО ДАТЧИКА АБС

2 053 ₽/шт

6

07130-0512B

БОЛТ

102 ₽/шт

7

69211-15H00

DISC,RR BRAKE

27 370 ₽/шт

8

09106-08160

БОЛТ

178 ₽/шт

9

64711-33E20

AXLE,RR

5 865 ₽/шт

10

09160-25070

Шайба

242 ₽/шт

11

09159-25003

Гайка

2 665 ₽/шт

12

64741-35F10

САЛЬНИК

1 377 ₽/шт

13

64751-49G00

ПРОСТАВКА ПОЛУОСИ

1 411 ₽/шт

14

64610-35F30

DRUM,RR SPROCKET

17 517 ₽/шт

15

64733-35F00

ВТУЛКА

1 309 ₽/шт

16

09262-32024

Bearing,rr Sprocket Drum

2 584 ₽/шт

17

09285-39001

САЛЬНИК

808 ₽/шт

18

64651-35F20

ABSORBER,RR HUB SHOCK

1 458 ₽/шт

19

64511-15H00

SPROCKET,RR(43T-530)

12 835 ₽/шт

20

08319-3110B

Гайка

1 920 ₽/шт

21

65110-24F50

Tire,rear

22

43130-24A00

Ниппель

468 ₽/шт

23

55411-22H00

BALANCER,WHEEL(10G)

430 ₽/шт

23

55412-22H00

BALANCER,WHEEL(20G)

504 ₽/шт

23

55413-22H00

BALANCER,WHEEL(30G)

571 ₽/шт
