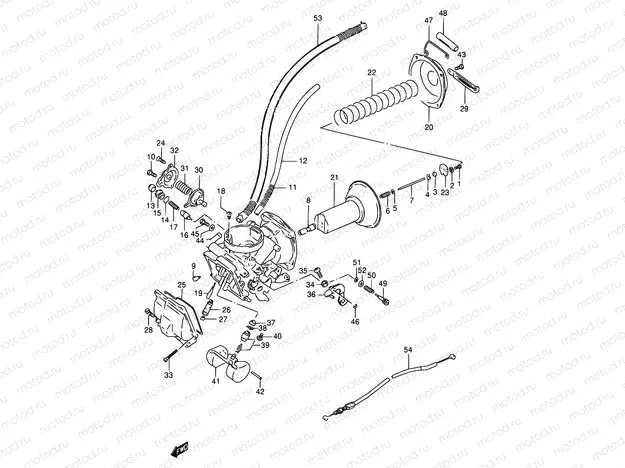

10 - CARBURETOR (FRONT)

10 - CARBURETOR (FRONT)
Например: 13210-39E50
0
13210-39E50
Carburetor assy, front
0
13210-39E70
Carburetor assy, front
0
13210-39E80
Carburetor assy, front
1
02112-0306B
Болт
940 ₽/шт
2
09162-03001
Шайба блокирующая
900 ₽/шт
3
13387-47010
RING
323 ₽/шт
4
13394-40D20
E RING
282 ₽/шт
5
13382-44030
Шайба
4 110 ₽/шт
6
13388-44030
Пружина
1 143 ₽/шт
7
13383-38A20
Жиклер
1 071 ₽/шт
8
09494-00855
Jet,needle(p-3)
9
13605-05A10
Болт
559 ₽/шт
10
02112-04107
Болт
82 ₽/шт
11
13689-38A00
Пружина
606 ₽/шт
12
09352-50005-600
ШЛАНГ
436 ₽/шт
13
13681-04011
CAP
835 ₽/шт
14
13278-47091
O Ring
210 ₽/шт
15
13418-38A00
HOLDER,GUIDE
821 ₽/шт
16
13411-01400
Плунжер
782 ₽/шт
17
13417-08210
Пружина
204 ₽/шт
18
09492-75002
.jet, pilot air (75)
19
09492-32004
Jet,pilot
20
13502-38A00
COVER,DIAPHRAGM
2 502 ₽/шт
21
13500-05A10
DIAPHRAGM,CARBURETOR
15 647 ₽/шт
22
13503-05A10
Пружина
864 ₽/шт
23
13389-37400
PLATE
368 ₽/шт
24
02112-0410A
Болт
740 ₽/шт
25
13251-38A00
Уплотнитель поплавковой камеры
1 211 ₽/шт
26
13385-05A11
HOLDER,MAIN JET
1 024 ₽/шт
27
09491-97004
Жиклер главный (97.5)
1 322 ₽/шт
28
13247-02340
Заглушка дренажная
258 ₽/шт
29
09404-06039
Clamp(L:65)
194 ₽/шт
30
13480-05A10
.diaphragm assy
31
13481-45C10
Пружина
375 ₽/шт
32
13484-38A00
COVER
1 521 ₽/шт
33
13602-48B10
Болт
170 ₽/шт
34
08310-00047
Гайка
81 ₽/шт
35
02112-0430B
Болт
85 ₽/шт
36
13554-45C20
LEVER ASSY
2 796 ₽/шт
37
13376-19F00
Фильтр-сеточка
581 ₽/шт
38
13374-35C00
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
39
13370-39A00
Клапан
7 395 ₽/шт
40
13602-05A10
Болт
238 ₽/шт
41
13250-05A10
Поплавок
2 424 ₽/шт
42
13254-20010
Поплавок
178 ₽/шт
43
02112-05127
Болт
81 ₽/шт
44
13523-46110
Прокладка
179 ₽/шт
45
02112-0506B
Болт
1 090 ₽/шт
46
13415-38300
E RING
106 ₽/шт
47
13671-38A00
CLIP
759 ₽/шт
48
09352-60104-600
Hose(6X10X600)
1 292 ₽/шт
49
13279-47070
Винт топливный
884 ₽/шт
50
13268-47070
Пружина
272 ₽/шт
51
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
52
13291-29900
Шайба
162 ₽/шт
53
09354-65113-600
Cső (6.5x11.5x600)
54
13641-38A01
CABLE,IDLE SYNCRO
3 060 ₽/шт
