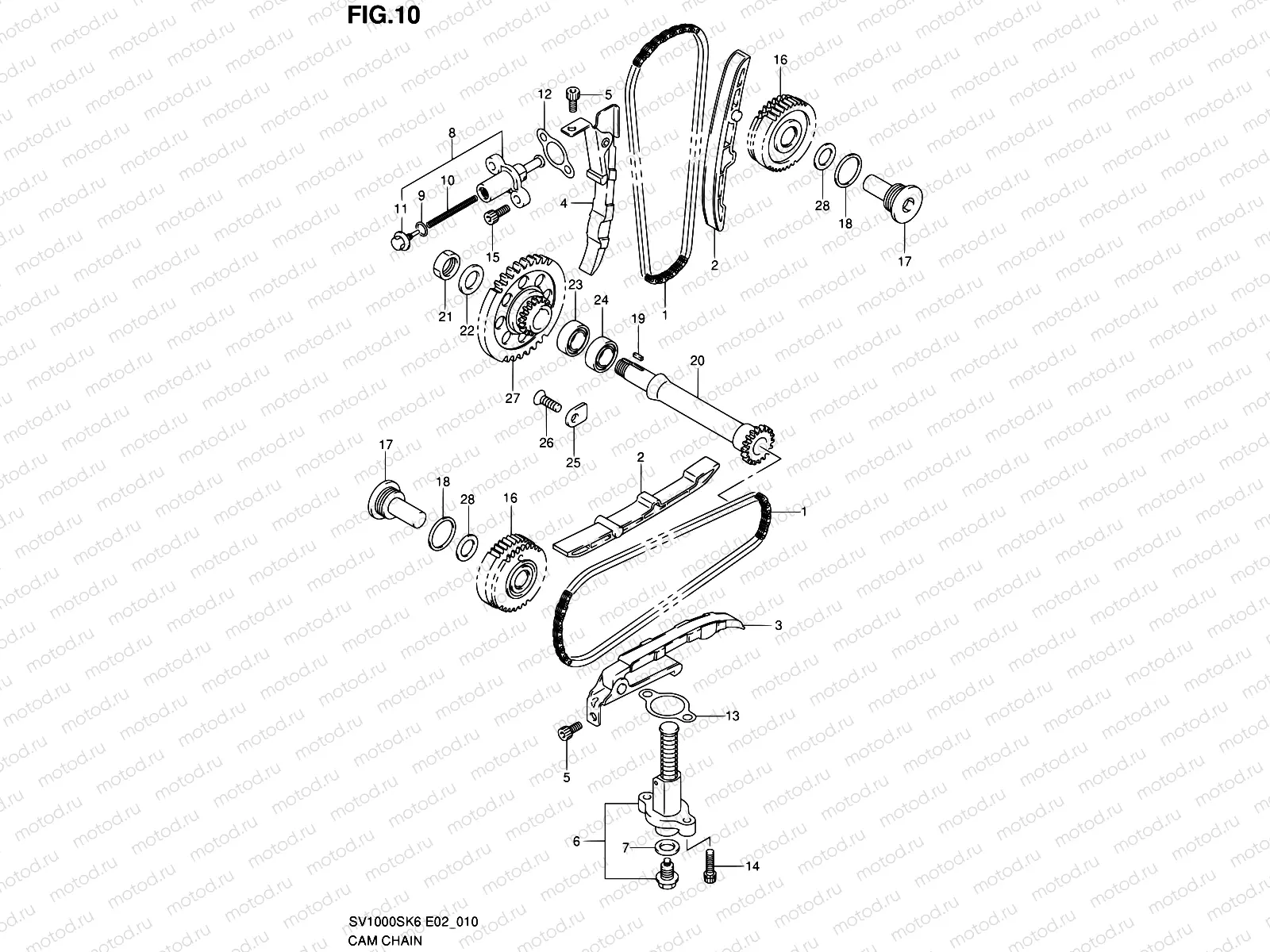

10 - CAM CHAIN

10 - CAM CHAIN

Например: 12760-23F00

1

12760-23F00

CHAIN,CAMSHAFT DRIVE

5 653 ₽/шт

2

12771-06G00

UIDE,CAM CHAIN

1 666 ₽/шт

3

12810-06G00

TENSIONER,CAM CHAIN FR

6 375 ₽/шт

4

12815-06G00

TENSIONER,CAM CHAIN RR

6 375 ₽/шт

5

07120-0612B

БОЛТ

184 ₽/шт

6

12832-05A10

DJUSTER ASSY,TENSIONER FR

10 540 ₽/шт

7

09168-12018-666

Gasket,copper 1

8

12830-30A01

DJUSTER ASSY,TENSIONER

7 905 ₽/шт

9

12832-02A00

O RING

204 ₽/шт

10

12833-30A01

Пружина

194 ₽/шт

11

12834-02A00

Заглушка

899 ₽/шт

12

12837-19B10

Прокладка

204 ₽/шт

13

12837-24A10

ПРОКЛАДКА НАТЯЖИТЕЛЯ ЦЕПИ

162 ₽/шт

14

07130-0625B

БОЛТ

97 ₽/шт

15

07130-0620B

БОЛТ

97 ₽/шт

16

12750-06G00

EAR,CAM CHAIN IDLER NO.2

11 965 ₽/шт

17

12755-02F01

SHAFT,IDLER NO.2

2 757 ₽/шт

18

09168-26001

Прокладка

258 ₽/шт

19

09421-04004

Ключ

2 270 ₽/шт

20

12716-06G00

SHAFT,IDLER

7 664 ₽/шт

21

09140-16005

Гайка

275 ₽/шт

22

09181-16212

Шайба

1 520 ₽/шт

23

08112-63030

Подшипник

1 388 ₽/шт

24

09262-25006

BEARING(25X47X8)

1 496 ₽/шт

25

24741-20A00

RETAINER,COUNTER BEARING,R

170 ₽/шт

26

09126-06011

SCREW,6X12

81 ₽/шт

27

12731-06G01

SPROCKET,IDLER NO.1

6 491 ₽/шт

28

09181-15164

SHIM(15X24X0.9)

2 030 ₽/шт

28

09181-15166

SHIM(15X24X1)

179 ₽/шт

28

09181-15172

SHIM(15X24X1.1)

2 030 ₽/шт

28

09181-15176

SHIM(15X24X1.2)

2 030 ₽/шт

28

09181-15181

SHIM(15X24X1.3)

2 030 ₽/шт

28

09181-15182

SHIM(15X24X1.4)

2 030 ₽/шт
