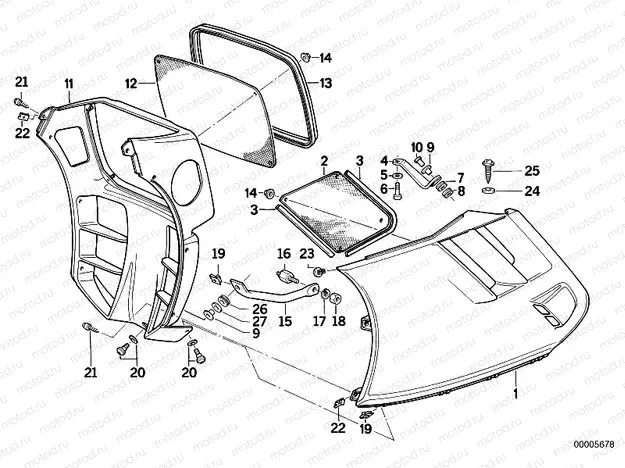

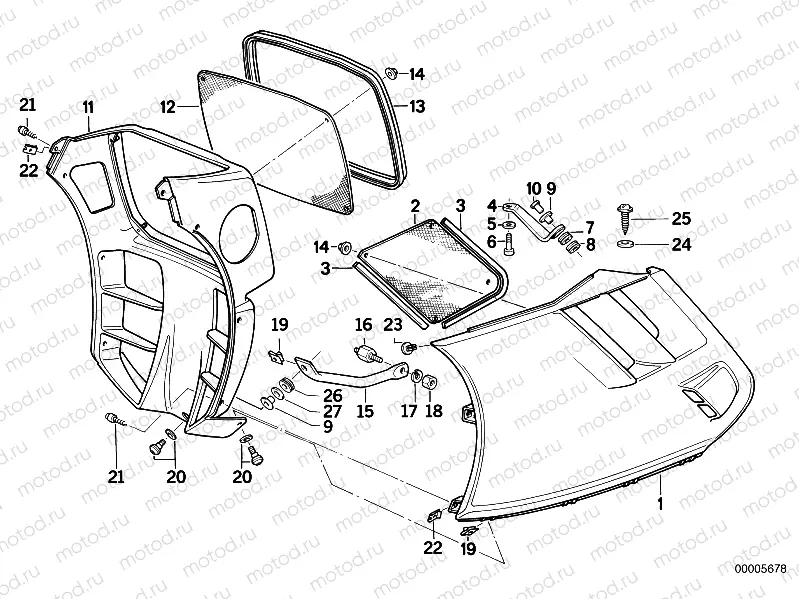

Fairing side section / Center part

Fairing side section / Center part

Например: 46630026112

1

46630026112

TRIM PANEL PRIME COATED RIGHT

1

46632308313

TRIM PANEL PRIME COATED LEFT

1

46630026112

TRIM PANEL PRIME COATED RIGHT

2

46632308449

Grid

3

46638372833

Edge protection

4

46632308538

Bracket

4

46632308539

Bracket

5

07119904202

Rondelle

5

07119904202

Rondelle

5

07119904202

Rondelle

6

07129905536

Vis (Torx)

6

07129905536

Vis (Torx)

7

46631451277

Damper

8

46631451278

Insert

9

46631451275

Bush

9

46631455129

Bush

9

17111460767

Spacer bush

10

46631453960

Cap nut

11

46630026108

RADIOTOR TRIM PANEL PRIME COATED CENTER

11

46630026108

RADIOTOR TRIM PANEL PRIME COATED CENTER

12

46632308448

Grid

13

46632309726

Gasket

13

46632308192

SYNTHETIC STRIP

14

46632309136

Nut

15

46632308700

Bracket

16

46718554872

Rubber Mounting

16

46718554872

Rubber Mounting

17

07119933096

SPRING WASHER

18

07119905515

Nut

18

07119905515

Nut

18

07119905515

Nut

19

61131372033

Body nut

20

46612308632

Vis

21

46632309201

Vis

22

07129904144

Body nut

22

07129904144

Body nut

22

07129901645

Body nut

23

52531451393

Expanding nut

24

07119936439

Rondelle

24

07119936439

Rondelle

26

31427267586

Rubber grommet

26

07147267586

Rubber grommet

27

07119904164

Rondelle

27

07119904164

Rondelle
