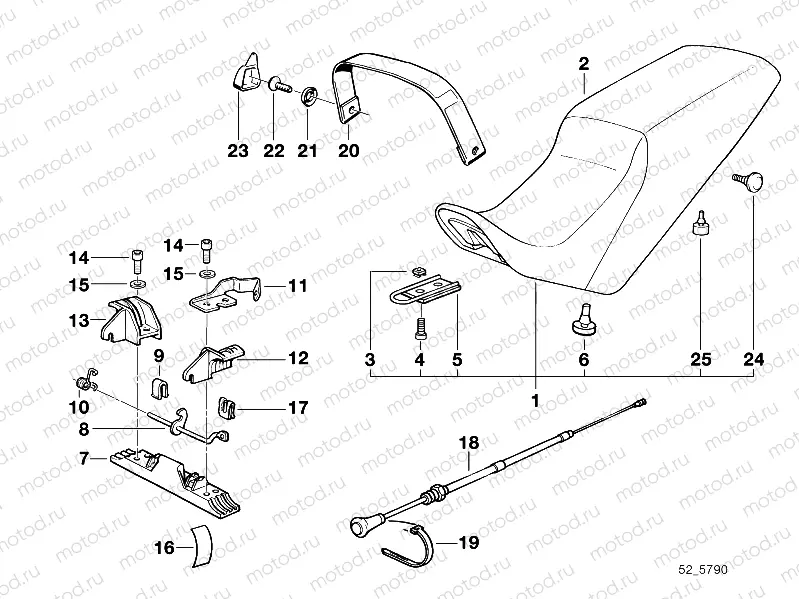

Главная Каталог товаров BMW Motorrad EPC BMW CLASSIC BMW Motorrad 1993 BMW Motorrad BMW CLASSIC K-Model 4-cyl. 4V BMW Motorrad BMW CLASSIC 1993 K 1 (0525,0535) BMW Motorrad BMW CLASSIC 1993 K-Model 4-cyl. 4V (VIN: K589(K1, K100RS)) Bench seat

Bench seat

Bench seat

Например: 52532309362

1

52532309362

Double seat bench

1

52532309369

Double seat bench

1

52532323089

Double seat bench

1

52532322381

Upholstery imitation leathear

1

52532308470

Upholstery imitation leathear

1

52532308471

Carrier

2

52532308019

Seat cover vinyl schwarz/gelb

2

52532309377

Seat cover vinyl

2

52532323093

Seat cover vinyl

2

52532309366

Seat cover vinyl schwarz/gelb

2

07119907939

Vis

2

52532308472

Carrier

3

07129926512

CAGE NUT

3

52532308556

Couvrir

3

07129904886

CAGE NUT

3

07129904886

CAGE NUT

4

07119902316

Vis (Torx)

4

07119902316

Vis (Torx)

4

46612308632

Vis

4

46631451275

Bush

5

52532309750

Catch bracket

5

46631451277

Damper

6

52531230319

Rubber support

6

07119936439

Rondelle

6

07146977329

Rondelle

6

46636977329

Rondelle

7

51252308117

Lock

7

07119905710

Nut

7

07119905710

Nut

7

07129903807

Vis

7

07129903807

Vis

8

51252308118

Catch

8

07119904202

Rondelle

8

07119904202

Rondelle

8

46542308462

Handle

9

51252308112

Spring

9

07119904259

Vis (Torx)

9

07129904259

Oval-head screw with anti-rotation lock

9

07119936134

TOOTH WASHER

10

51252308121

RETAINER SPRING

10

07129905817

Nut

10

07129905817

Nut

10

07129905817

Nut

10

07119904606

Rondelle

10

07119904606

Rondelle

11

51252308099

CLAMPING LEFT

11

52532309099

Holder

11

07129905536

Vis (Torx)

11

07129905536

Vis (Torx)

12

51252308123

CLAMPING LEFT

12

17112309195

Gasket

13

51252308124

CLAMPING RIGHT

13

52532309291

Gasket

13

52530026115

Couvrir

13

52530026115

Couvrir

14

07119904303

Vis (Torx)

14

12139904303

Vis (Torx)

14

52532309231

Couvrir

14

52532309222

Couvrir

15

07119904206

Rondelle

15

07119936439

Rondelle

15

07119904206

Rondelle

15

52532309221

Support

15

32722333059

Vis (countersunk)

15

32722333059

Vis (countersunk)

15

32722333059

Vis (countersunk)

16

51252308126

PROTECTIVE HOSE

16

52532308464

Pad

16

52532308463

Pad

17

07129934900

Collier

17

46637658638

Plug-in nut

17

46637658638

Plug-in nut

18

51252308473

Bowden cable

18

07119905138

Vis

18

07119905138

Vis

19

61131367599

Cable tie

20

52532309199

Strap

21

07119903791

Rondelle

21

07119903791

Rondelle

22

07119907649

Vis (Torx)

23

52531453317

Cap

24

52532308548

Vis

25

52531236128

Bump stop
