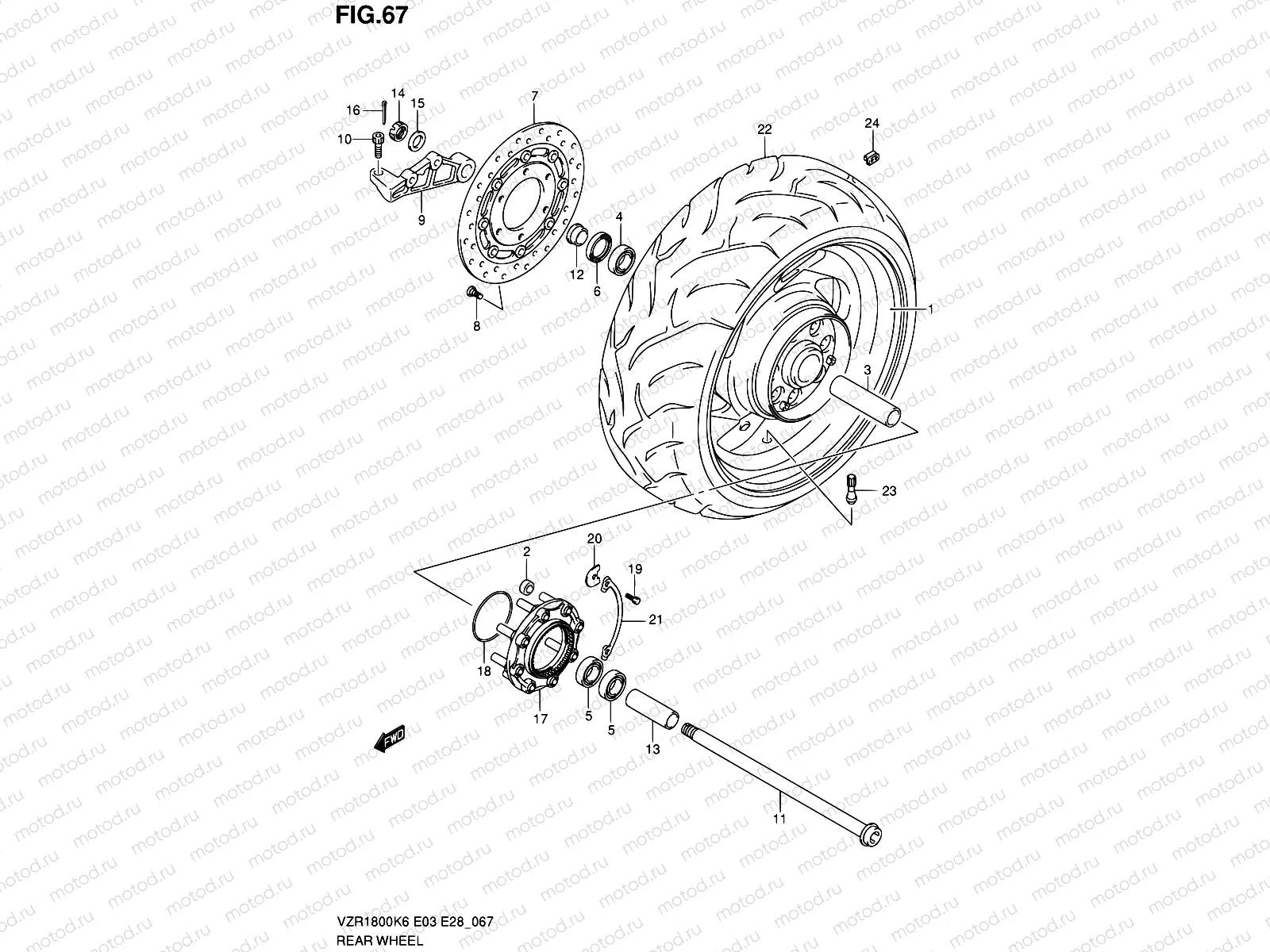

67 - REAR WHEEL (MODEL K6/K7)

67 - REAR WHEEL (MODEL K6/K7)

Например: 64100-48810-YD8

1

64100-48810-YD8

WHEEL SET,RR(18M/CXMT8.50)

185 674 ₽/шт

2

09319-12019

САЙЛЕНТБЛОК ВЕРХ.

759 ₽/шт

3

64731-48G00

SPACER,RR WHEEL BEARING

3 695 ₽/шт

4

09262-25061

Подшипник B1 25X52X15

2 019 ₽/шт

5

08143-62057

BEARING

1 405 ₽/шт

6

09285-32004

САЛЬНИК

598 ₽/шт

7

69210-10F50

DISC,RR BRAKE

66 830 ₽/шт

8

09106-08160

БОЛТ

178 ₽/шт

9

69721-48G00

BRACKET,RR CALIPER

11 691 ₽/шт

10

09106-12003

BOLT(12X35)

226 ₽/шт

11

64711-48G10

AXLE,RR

15 405 ₽/шт

12

64741-48G00

SPACER,RR AXLE,R

1 325 ₽/шт

13

64772-48G00

SPACER,RR AXLE,L

1 785 ₽/шт

14

09141-22001

NUT

11 930 ₽/шт

15

09160-22081

Шайба

146 ₽/шт

16

04111-4035A

Штифт

820 ₽/шт

17

64680-48G00

JOINT ASSY,RR HUB DRIVEN

23 265 ₽/шт

18

09280-80001

O RING(D:2.4,ID:79.8)

211 ₽/шт

19

09119-06049

БОЛТ

900 ₽/шт

20

64679-48G00

WASHER,RR HUB DRIVEN JOINT

321 ₽/шт

21

64677-48G00

Шайба упорная

696 ₽/шт

22

65110-48G01

TIRE,RR

54 978 ₽/шт

23

43130-24A00

Ниппель

468 ₽/шт

24

43222-73H10-A05

Felni súly

24

43224-73H10-A05

BALANCER. WHEEL NO.2

24

43226-73H10-A05

BALANCER. WHEEL NO.3
