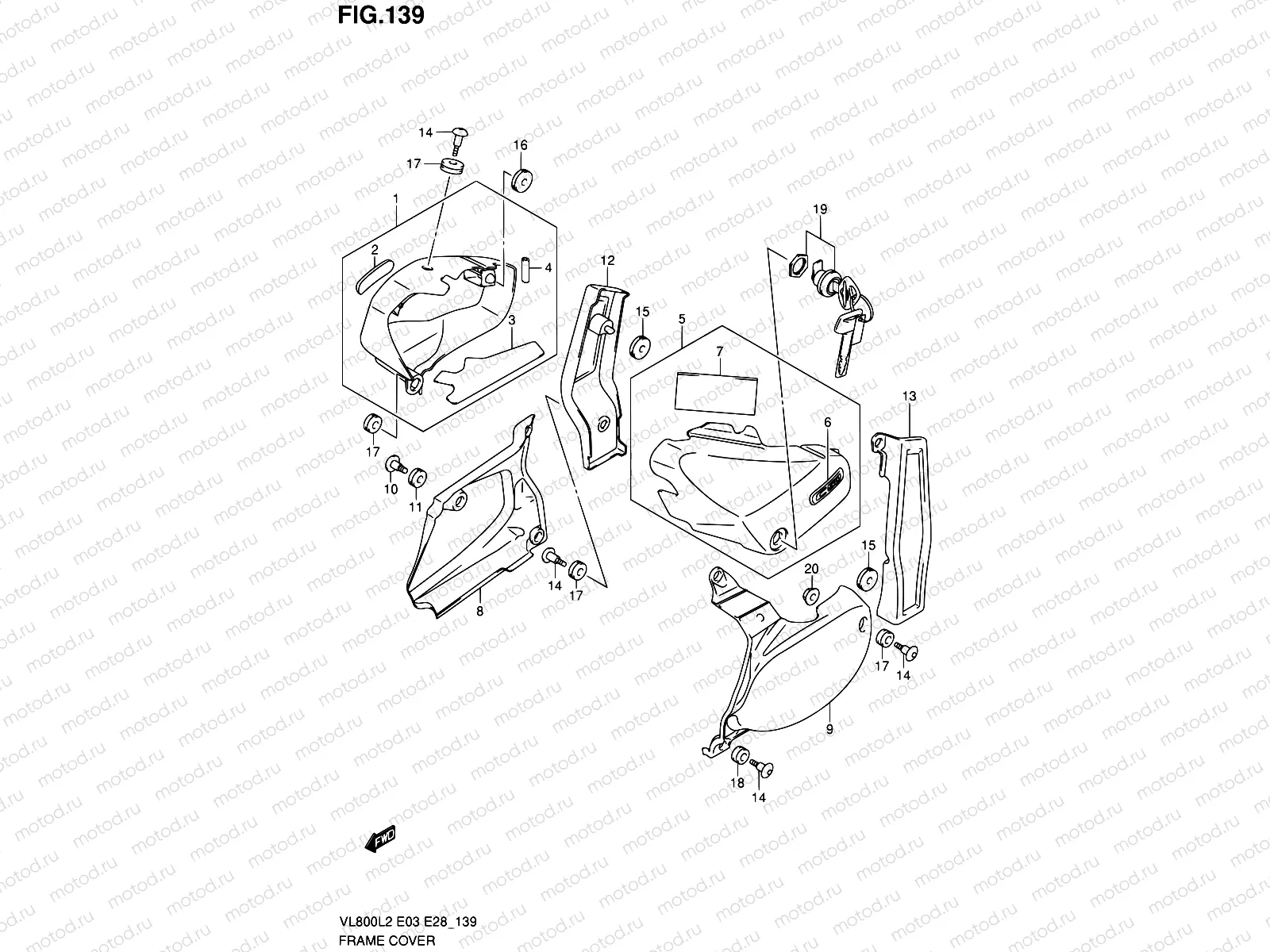

139 - FRAME COVER (VL800TL2 E28)

139 - FRAME COVER (VL800TL2 E28)

Например: 47110-41FN0-YUF

1

47110-41FN0-YUF

Cover, frame rh (blue)

1

47110-41FN0-YVB

Cover, frame rh (black)

2

68131-41F50

.emblem, "c50t"

3

47166-41F00

SHIELD,FRAME COVER

891 ₽/шт

4

94631-35F00

MOLDING

375 ₽/шт

5

47210-41FM0-YUF

Cover, frame lh (blue)

5

47210-41FM0-YVB

Cover frame lh

6

68131-41F50

.emblem, "c50t"

7

47217-41F00

CUSHION,LUGGAGE BOX

493 ₽/шт

8

47130-41F00

COVER,SIDE LWR,R

14 623 ₽/шт

9

47231-41F00

COVER,SIDE LWR,L

23 265 ₽/шт

10

47133-43H00

SCREW,SIDE COVER LOWER,R

368 ₽/шт

11

09320-08510

Втулка резиновая (8.5X20X8)

194 ₽/шт

12

47141-41F01-019

COVER,SIDE RR,R

6 999 ₽/шт

13

47241-41F00-019

COVER,SIDE RR,L

5 423 ₽/шт

14

09139-06126

БОЛТ МЕТАЛЛ (6х20)

194 ₽/шт

15

09320-08527

Cushion

1 640 ₽/шт

16

09320-08514

Damper

17

09320-09501

ДЭМПФЕР

1 250 ₽/шт

18

09320-09062

Damper

19

95700-07861

Lock Set,cover

10 892 ₽/шт

20

08316-1006B

Гайка

81 ₽/шт
