Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 400 Burgman SUZUKI AN400ZA L3 Burgman 400 (E02,E19) SUZUKI 137 - PILLION RIDER HANDLE (AN400ZAL3 E02)

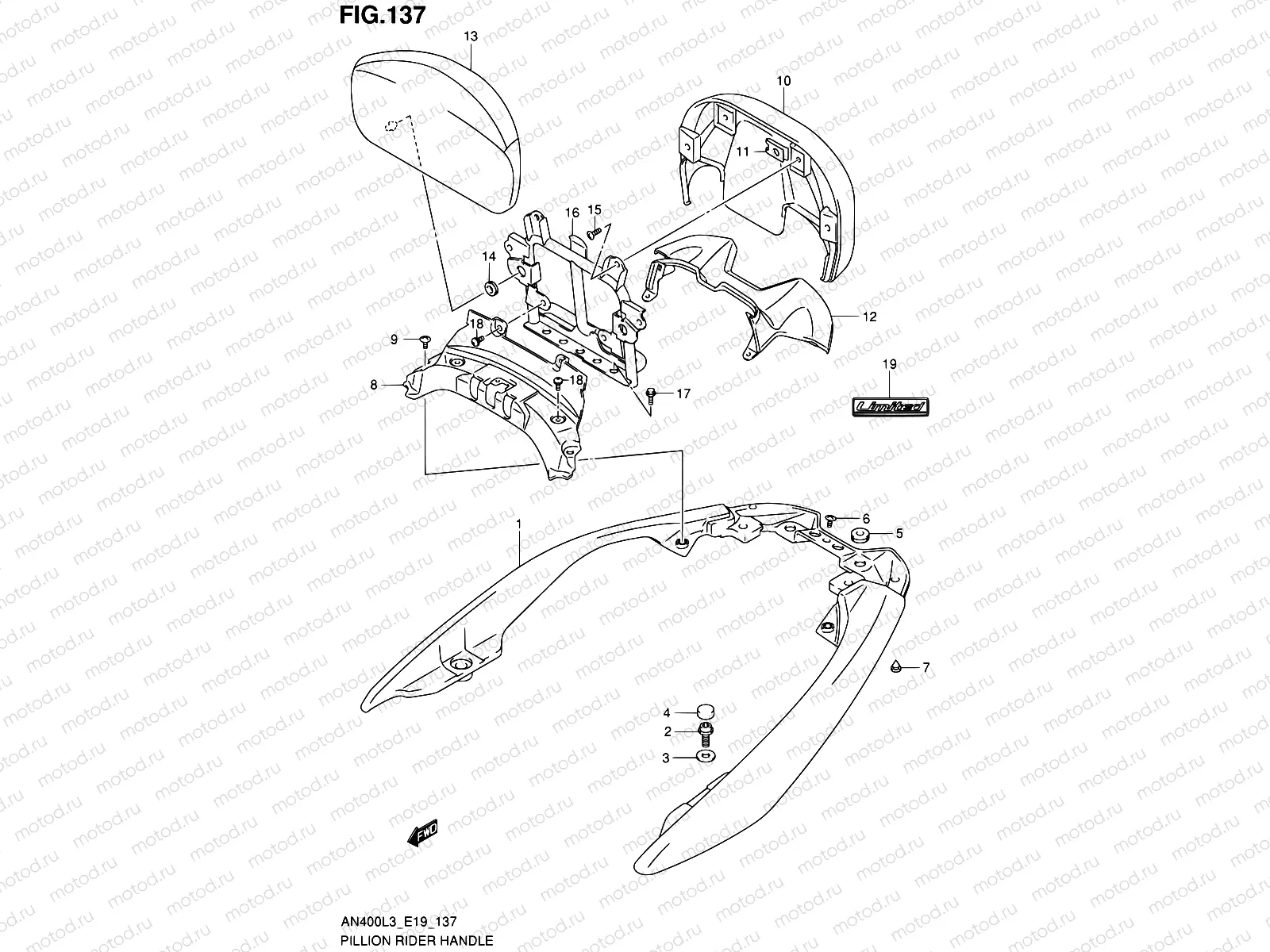

137 - PILLION RIDER HANDLE (AN400ZAL3 E02)

137 - PILLION RIDER HANDLE (AN400ZAL3 E02)

Например: 46210-05H03-YBD

1

46210-05H03-YBD

ANDLE,PILLION RIDER(WHITE)

151 317 ₽/шт

1

46210-05H03-YVB

ANDLE,PILLION RIDER(BLACK)

67 694 ₽/шт

2

09106-08151

Болт

179 ₽/шт

3

09169-08049

Шайба

2 390 ₽/шт

4

46271-14G00

CAP

375 ₽/шт

5

09320-08514

Damper

6

09139-06168

БОЛТ

194 ₽/шт

7

09250-06017

Plug(Od:10)

2 070 ₽/шт

8

46215-05H50-291

Cover,backrest

9

09139-06168

БОЛТ

194 ₽/шт

10

46216-05H50-291

COVER,BACKREST RR

4 497 ₽/шт

11

09148-06018

Гайка

170 ₽/шт

12

46217-05H50-YBD

Cover, backrest rear lower (white)

12

46217-05H50-YVB

COVER,BACKREST RR LWR

13 607 ₽/шт

13

46220-05H60-AKZ

BACKREST ASSY,PILLION RIDER

15 054 ₽/шт

14

09320-08049

САЙЛЕНТБЛОК

211 ₽/шт

15

02142-0612B

Винт

81 ₽/шт

16

46250-05H50

BRACKET,PILLION BACKREST

16 422 ₽/шт

17

09106-08161

BOLT(8X20)

2 270 ₽/шт

18

09409-06314-5PK

КЛИПСА КРЕПЁЖНАЯ, ПЛАСТИК

162 ₽/шт

19

68135-14FA0-YCR

EMBLEM,LIMITED

1 666 ₽/шт
