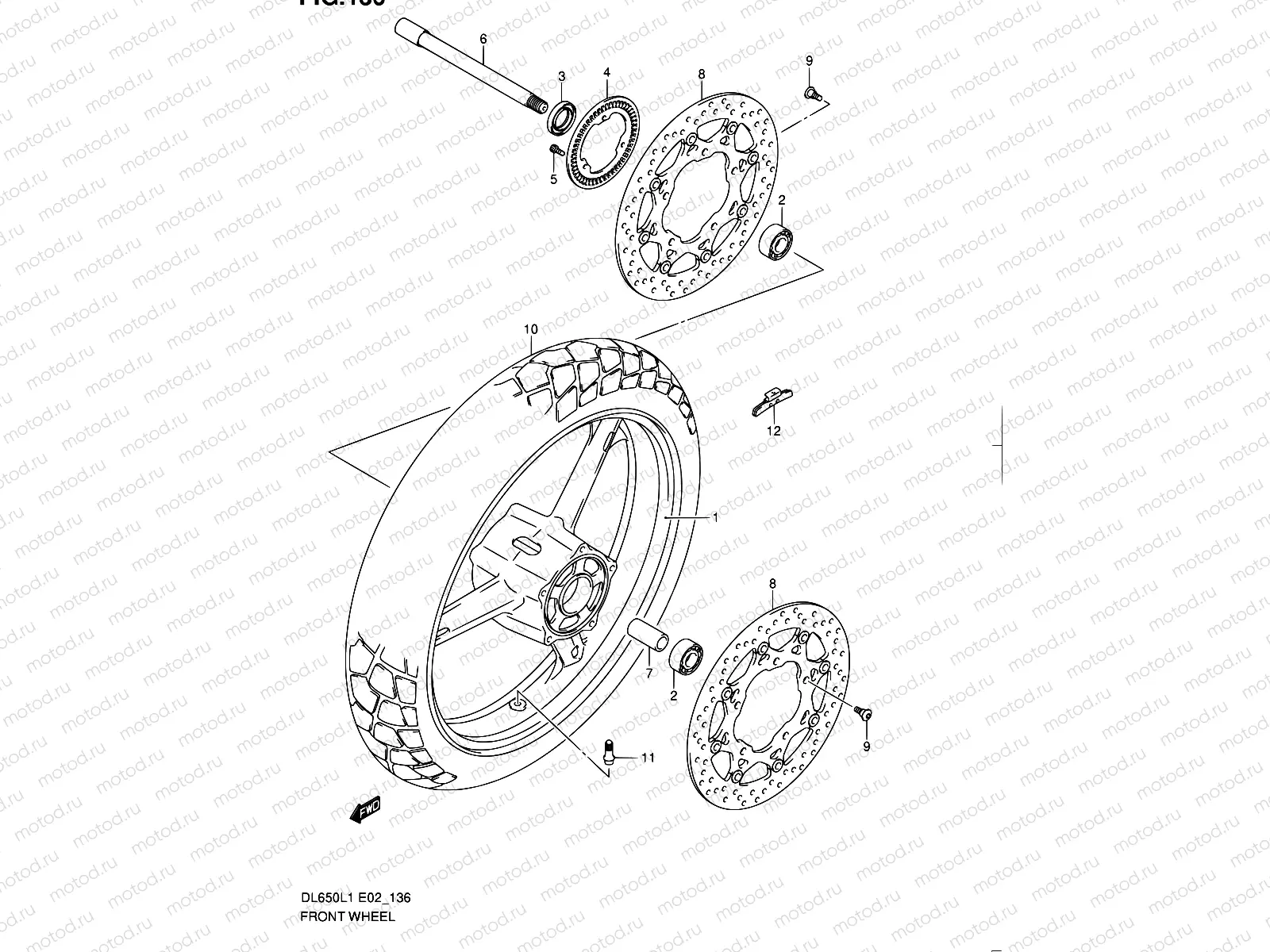

136 - FRONT WHEEL (DL650AL1 E02)

136 - FRONT WHEEL (DL650AL1 E02)

Например: 54111-27G40-019

1

54111-27G40-019

WHEEL,FR(19M/CXMT2.50)

66 572 ₽/шт

1

54111-27G40-YD8

WHEEL,FR

80 036 ₽/шт

2

08133-6203B

earing

1 394 ₽/шт

3

09282-24008

Joint

4

54162-27G00

RING,SPEED SENSOR FR(50T)

6 826 ₽/шт

5

07130-0512B

БОЛТ

102 ₽/шт

6

54711-08F10

AXLE,FR

5 474 ₽/шт

7

09180-17067

SPACER(17.5X25X88)

1 207 ₽/шт

8

59210-44G11

DISC,FR BRAKE

32 538 ₽/шт

9

09106-08160

БОЛТ

178 ₽/шт

10

55110-06G11

TIRE,FR(110/80R19M/C 59H)

27 175 ₽/шт

11

43130-24A00

Ниппель

468 ₽/шт

12

43222-73H10-A05

Felni súly

12

43224-73H10-A05

BALANCER. WHEEL NO.2

12

43226-73H10-A05

BALANCER. WHEEL NO.3
