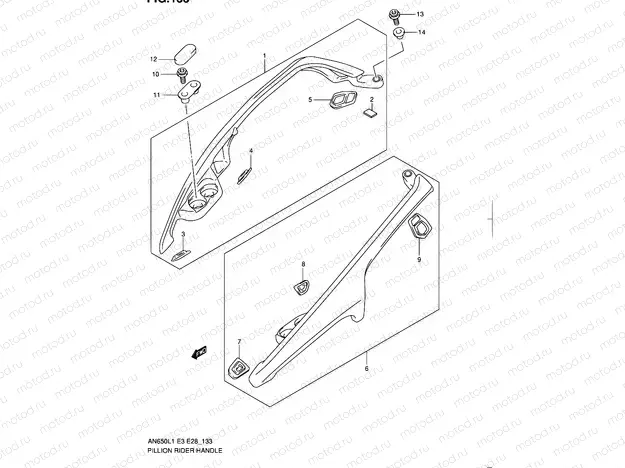

133 - PILLION RIDER HANDLE (AN650L1 E03)

133 - PILLION RIDER HANDLE (AN650L1 E03)

Например: 46210-10G04-YPA

1

46210-10G04-YPA

HANDLE,PILLION RIDER,R(WHITE)

59 840 ₽/шт

1

46210-10G04-YVB

HANDLE,PILLION RIDER,R(BLACK)

59 466 ₽/шт

2

33651-37000

PROTECTOR(170X95X3.0)

468 ₽/шт

3

46261-10G10

CUSHION,PILLION HANDLE FR,R

899 ₽/шт

4

46271-10G10

CUSHION,PILLION HANDLE CTR,R

813 ₽/шт

5

46281-10G01

CUSHION,PILLION HANDLE RR,R

864 ₽/шт

6

46230-10G03-YVB

HANDLE,PILLION RIDER,L

52 360 ₽/шт

6

46230-10G03-YPA

HANDLE,PILLION RIDER,L(WHITE)

52 734 ₽/шт

7

46262-10G10

CUSHION,PILLION HANDLE FR,L

817 ₽/шт

8

46272-10G10

CUSHION,PILLION HANDLE CTR,L

813 ₽/шт

9

46282-10G01

CUSHION,PILLION HANDLE RR,L

802 ₽/шт

10

09106-08151

Болт

179 ₽/шт

11

46290-10G01

WASHER,PILLION

704 ₽/шт

12

46251-10G00

Крышка

493 ₽/шт

13

09106-08151

Болт

179 ₽/шт

14

09169-08049

Шайба

2 390 ₽/шт
