Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSR 750 SUZUKI GSR750AUE L3 (E21) SUZUKI 131 - REAR WHEEL (GSR750AUEL3 E21)

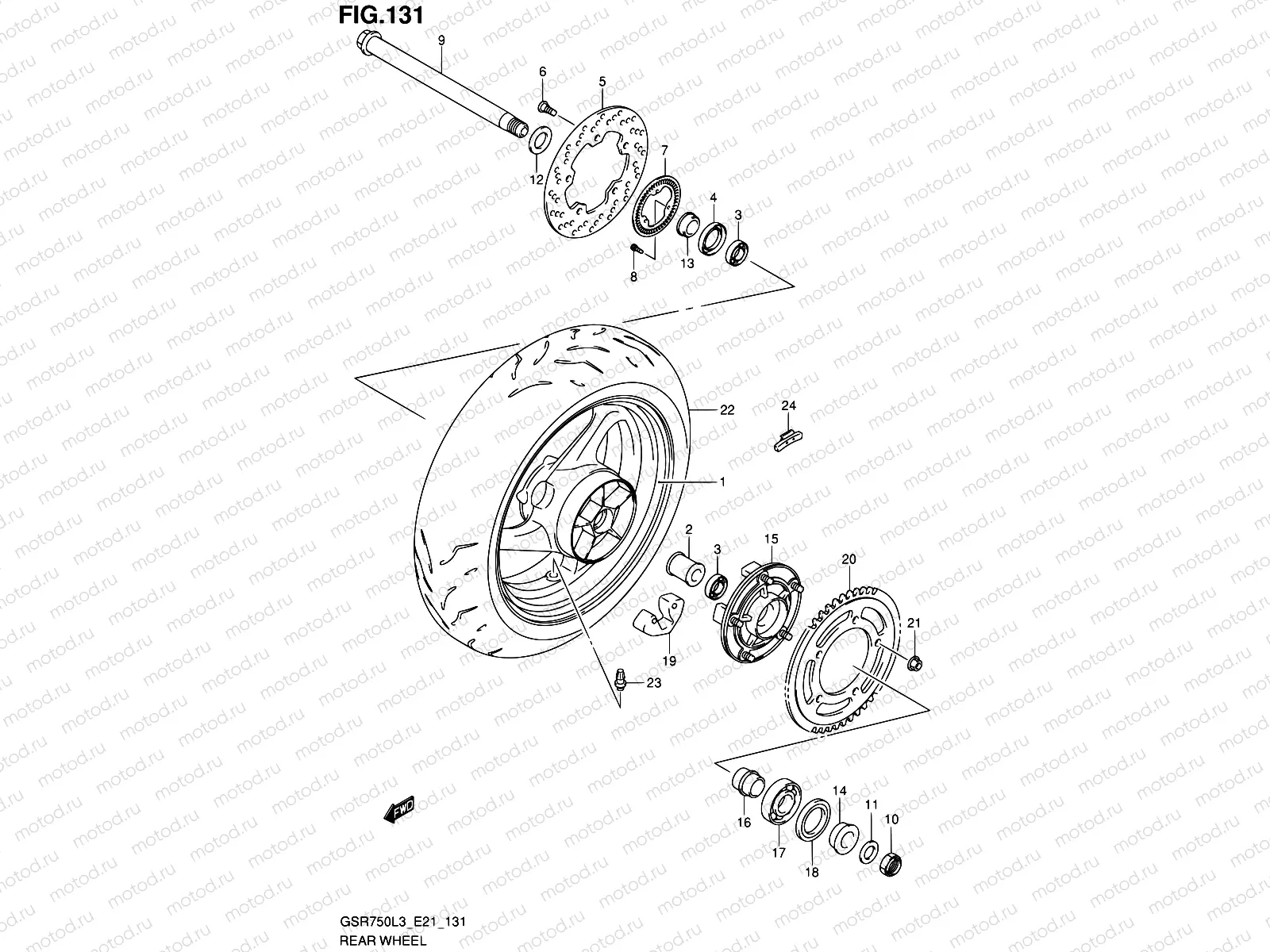

131 - REAR WHEEL (GSR750AUEL3 E21)

131 - REAR WHEEL (GSR750AUEL3 E21)

Например: 64111-44G10-019

1

64111-44G10-019

Wheel,rear(17m/

1

64111-44G10-20H

WHEEL. REAR (17M/CXMT5.50)

2

64731-44G00

SPACER,RR WHEEL BEARING

2 815 ₽/шт

3

09262-25061

Подшипник B1 25X52X15

2 019 ₽/шт

4

09284-37002

Seal,rear Wheel Bearing,r

646 ₽/шт

5

69211-38G00

DISC,REAR BRAKE

20 400 ₽/шт

6

09106-08160

БОЛТ

178 ₽/шт

7

54162-27G00

RING,SPEED SENSOR FR(50T)

6 826 ₽/шт

8

07130-0512B

БОЛТ

102 ₽/шт

9

64711-08J00

AXLE,RR

9 435 ₽/шт

10

09159-22007

Гайка

1 580 ₽/шт

11

09160-22086

WASHER(22X46X3)

3 010 ₽/шт

12

09160-25082

WASHER(25.5X46X3)

3 990 ₽/шт

13

64741-44G00

SPACER,RR AXLE,R

1 634 ₽/шт

14

64751-08J00

SPACER,RR AXLE,L

1 826 ₽/шт

15

64610-35F30

DRUM,RR SPROCKET

17 517 ₽/шт

16

64733-44G00

RETAINER,RR SPROCKET DRUM

1 779 ₽/шт

17

09262-32024

Bearing,rr Sprocket Drum

2 584 ₽/шт

18

09285-39001

САЛЬНИК

808 ₽/шт

19

64651-35F30

ABSORBER,RR HUB SHOCK

2 248 ₽/шт

20

64511-35F10

SPROCKET,RR(42T-525)

9 501 ₽/шт

21

08319-3110B

Гайка

1 920 ₽/шт

22

65110-08J00

TIRE,RR

46 376 ₽/шт

23

43130-24A00

Ниппель

468 ₽/шт

24

55411-22H00

BALANCER,WHEEL(10G)

430 ₽/шт

24

55412-22H00

BALANCER,WHEEL(20G)

504 ₽/шт

24

55413-22H00

BALANCER,WHEEL(30G)

571 ₽/шт
