Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 R Hayabusa SUZUKI GSX1300R L1 Hayabusa (E02) SUZUKI (VIN: JS1CK111) 128 - REAR MASTER CYLINDER

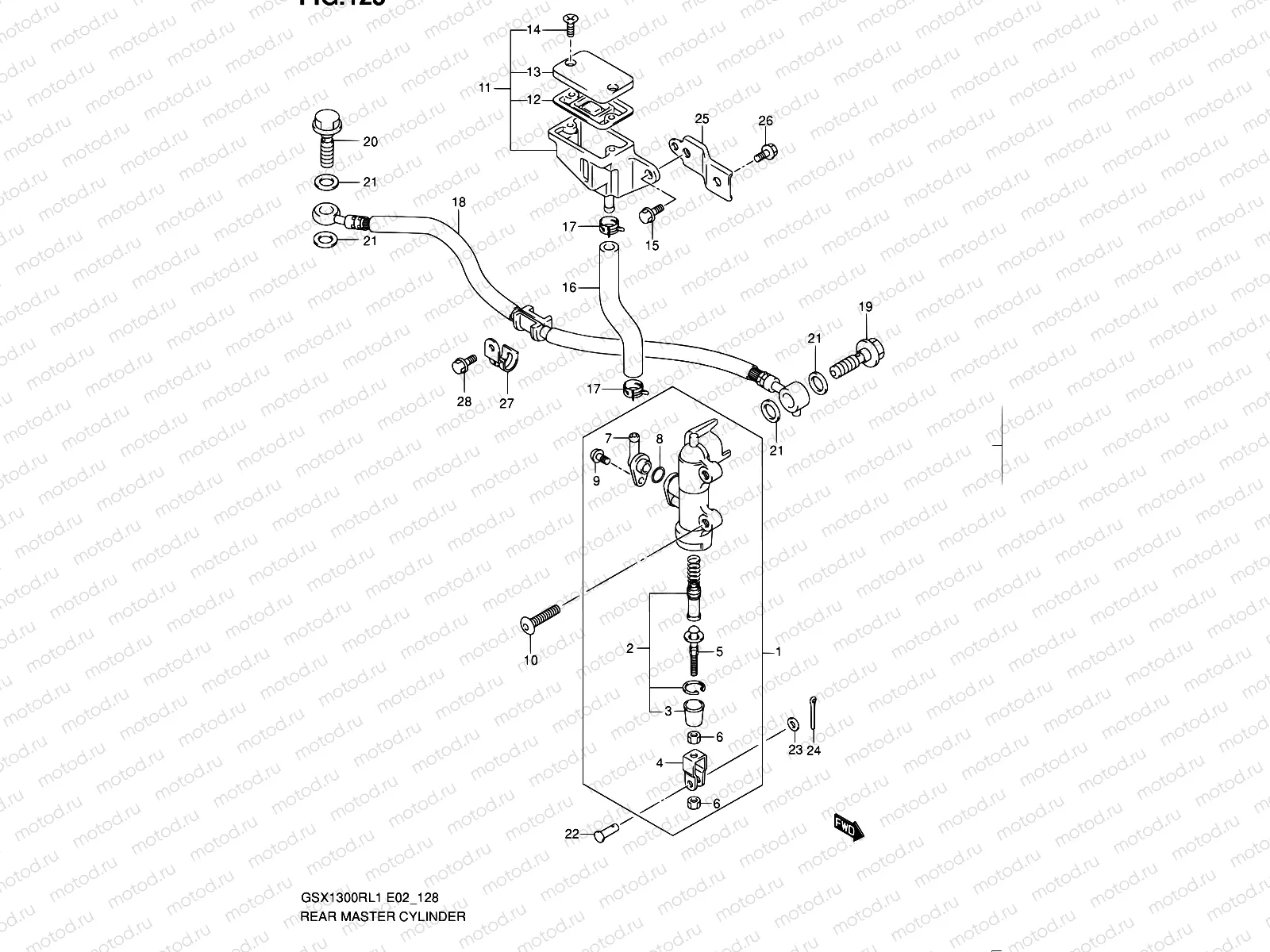

128 - REAR MASTER CYLINDER

128 - REAR MASTER CYLINDER

Например: 69600-15H00

1

69600-15H00

CYLINDER ASSY,RR MASTER

17 791 ₽/шт

2

69600-04821

Piston/Cup Set

3 740 ₽/шт

3

69691-00A00

Ботинок

275 ₽/шт

4

69692-27A30

Ботинок

1 066 ₽/шт

5

69670-27A30

Толкатель

1 337 ₽/шт

6

69693-05A00

Гайка

162 ₽/шт

7

69672-05A00

Коннектор

387 ₽/шт

8

69686-34200

Кольцо уплотнительное

162 ₽/шт

9

02112-7412A

Болт

97 ₽/шт

10

09139-06028

SCREW(6X20)

194 ₽/шт

11

69740-01D02

TANK ASSY,RR RESERVOIR

5 015 ₽/шт

12

59667-04700

УПЛОТНИТЕЛЬ

799 ₽/шт

13

59669-05D00

CAP

1 024 ₽/шт

14

69689-04A00

Болт

187 ₽/шт

15

01547-0612A

БОЛТ

81 ₽/шт

16

69731-24F00

HOSE,RESERVOIR TANK

1 056 ₽/шт

17

09401-13417

ХОМУТ МАЛЫЙ

170 ₽/шт

18

69480-15H01

ose,rr Brake

6 061 ₽/шт

19

09360-10061

Болт соединяющий

3 910 ₽/шт

20

09360-10062

Болт соединяющий

469 ₽/шт

21

09161-10009

Шайба

113 ₽/шт

22

09200-06068

Вал ручки

226 ₽/шт

23

08322-0106A

Шайба

81 ₽/шт

24

04111-2015A

Штифт

81 ₽/шт

25

69750-15H00

BRACKET,RR RESERVOIR TANK

653 ₽/шт

26

01550-0612A

БОЛТ КУЗОВНОЙ, МЕТАЛЛ

81 ₽/шт

27

69268-15H00

CLAMP,RR BRAKE HOSE

696 ₽/шт

28

01547-0612A

БОЛТ

81 ₽/шт
