Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VLR 1800 Intruder C1800R / Boulevard C109R SUZUKI VLR1800 L1 Intruder C1800R / Boulevard C109R (E03,E28,E33) SUZUKI 127 - REAR CUSHION LEVER (VLR1800TL1 E28)

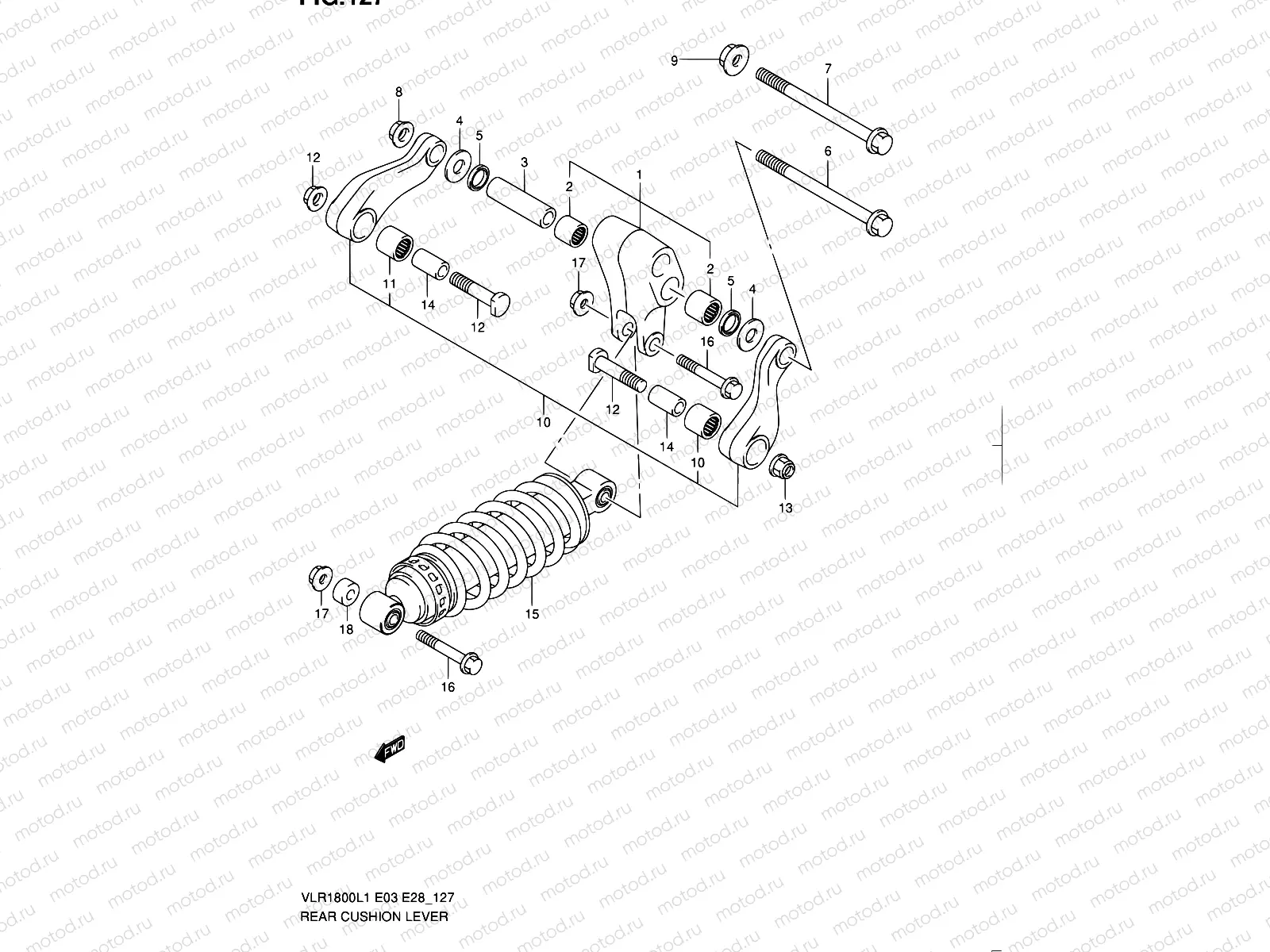

127 - REAR CUSHION LEVER (VLR1800TL1 E28)

127 - REAR CUSHION LEVER (VLR1800TL1 E28)

Например: 62600-22830

1

62600-22830

LEVER SET,RR CUSHION

29 716 ₽/шт

2

09263-22071

BEARING(22X29X25)

1 309 ₽/шт

3

62645-28E00

SPACER,RR CUSHION ROD

2 933 ₽/шт

4

09160-16052

WASHER(16X40X1)

581 ₽/шт

5

09285-22006

Seal,oil

226 ₽/шт

6

62658-44G10

BOLT,RR CUSHION LEVER UPR

2 033 ₽/шт

7

62658-44G10

BOLT,RR CUSHION LEVER UPR

2 033 ₽/шт

8

08319-3116A

Гайка

8 990 ₽/шт

9

09159-16023

Гайка

9 230 ₽/шт

10

62600-22841

Rod Set,rr Cushion

15 679 ₽/шт

11

09263-20116

Bearing

1 583 ₽/шт

12

09119-14006

BOLT

9 380 ₽/шт

13

08319-3114A

Гайка

646 ₽/шт

14

09180-14014

SPACER(14X20X34)

731 ₽/шт

15

62100-22H20

ABSORBER ASSY,RR SHOCK

87 516 ₽/шт

16

62658-27C10

BOLT,RR CUSHION LEVER FR

669 ₽/шт

17

09159-12056

Гайка

565 ₽/шт

18

09180-12157

SPACER(12.1X25X14.5)

8 990 ₽/шт
