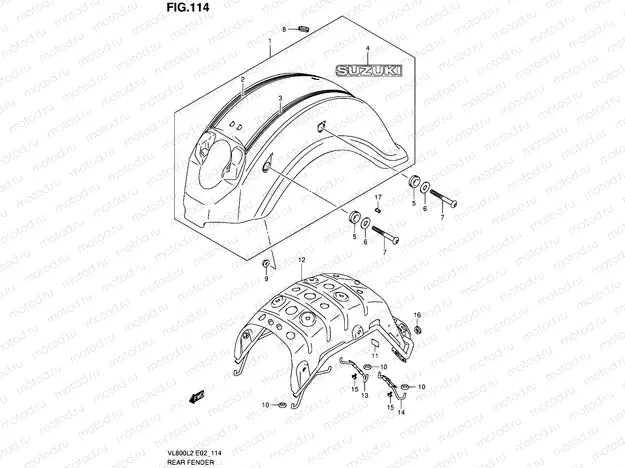

114 - REAR FENDER (VL800CL2 E02)

114 - REAR FENDER (VL800CL2 E02)

Например: 63110-43H21-HYA

1

63110-43H21-HYA

Fender,rr

72 556 ₽/шт

1

63110-43H20-JEW

Fender,rear vl8

2

68170-43H00-JFZ

TAPE SET,RR FENDER,R

2 346 ₽/шт

2

68170-43H00-JGA

.tape set, rh

3

68710-43H00-JFZ

TAPE SET,RR FENDER,L

2 346 ₽/шт

3

68710-43H00-JGA

.tape set, lh

4

68271-34A01-YES

mblem,"suzuki"

578 ₽/шт

4

68271-34A01-YJH

Emblem, suzuki

5

47191-24F00

CUSHION,FRAME COVER UPR RR

323 ₽/шт

6

09160-15002

WASHER(15.5X26X2.3)

113 ₽/шт

7

63161-41F00

BOLT,RR FENDER

459 ₽/шт

8

09320-15008

САЙЛЕНТБЛОК

2 310 ₽/шт

9

08316-1008B

Гайка

81 ₽/шт

10

09320-06026

САЙЛЕНТБЛОК

2 030 ₽/шт

11

53145-17C12

ushion,fr Fender

1 394 ₽/шт

12

63130-43H00

REINF,RR FENDER

25 611 ₽/шт

13

63150-43H00

BRACKET,RR FENDER LWR,R

2 053 ₽/шт

14

63160-43H00

BRACKET,RR FENDER LWR,L

2 053 ₽/шт

15

01550-0610B

Болт

85 ₽/шт

16

09308-10017

Втулка

2 540 ₽/шт

17

09250-07004

PLUG(OD:9)

1 720 ₽/шт
