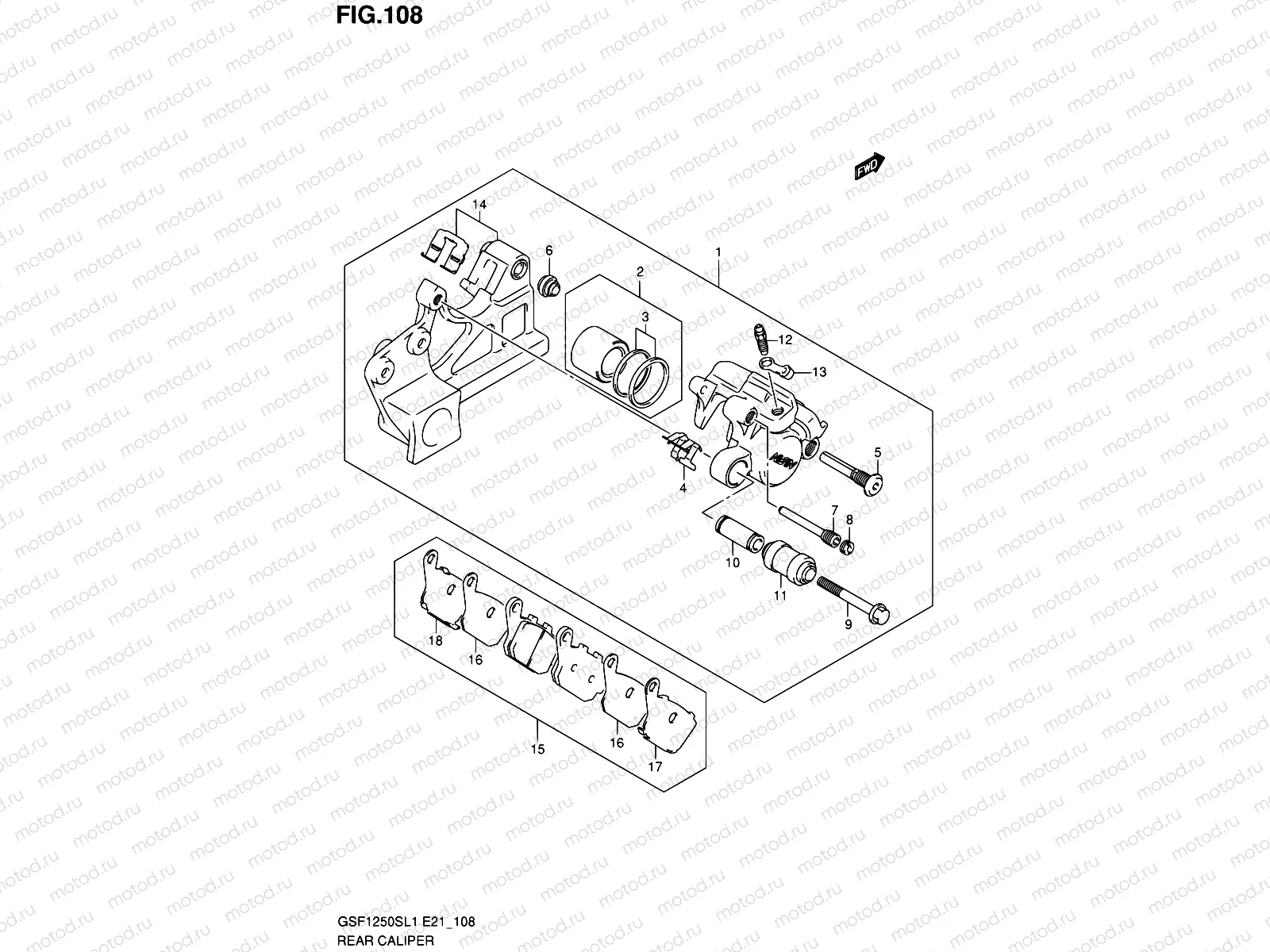

108 - REAR CALIPER (GSF1250SL1 E21)

108 - REAR CALIPER (GSF1250SL1 E21)

Например: 69100-38G70-999

1

69100-38G70-999

CALIPER ASSY,RR GSF1250/L1

2

69100-04810

PISTON SET

3 957 ₽/шт

3

69100-04820

SEAL SET,PISTON

1 326 ₽/шт

4

69115-06G00

Пружина

442 ₽/шт

5

59305-36E00

Стопор

759 ₽/шт

6

59303-14500

Пыльник

307 ₽/шт

7

69141-40F00

PIN,PAD

833 ₽/шт

8

59146-21E10

PLUG,PIN

388 ₽/шт

9

69182-04F00

Болт

374 ₽/шт

10

69185-04F00

Втулка

692 ₽/шт

11

69186-04F00

Пыльник

486 ₽/шт

12

59121-01A00

BLEEDER

1 226 ₽/шт

13

59122-46H00

CAP,BLEEDER

162 ₽/шт

14

69150-38G40

Bracket

15

69100-16852

PAD & RETAINER SET

10 880 ₽/шт

16

69132-06G00

Изолятор

1 020 ₽/шт

17

69133-16G00

RETAINER

748 ₽/шт

18

69134-16G00

RETAINER

841 ₽/шт
