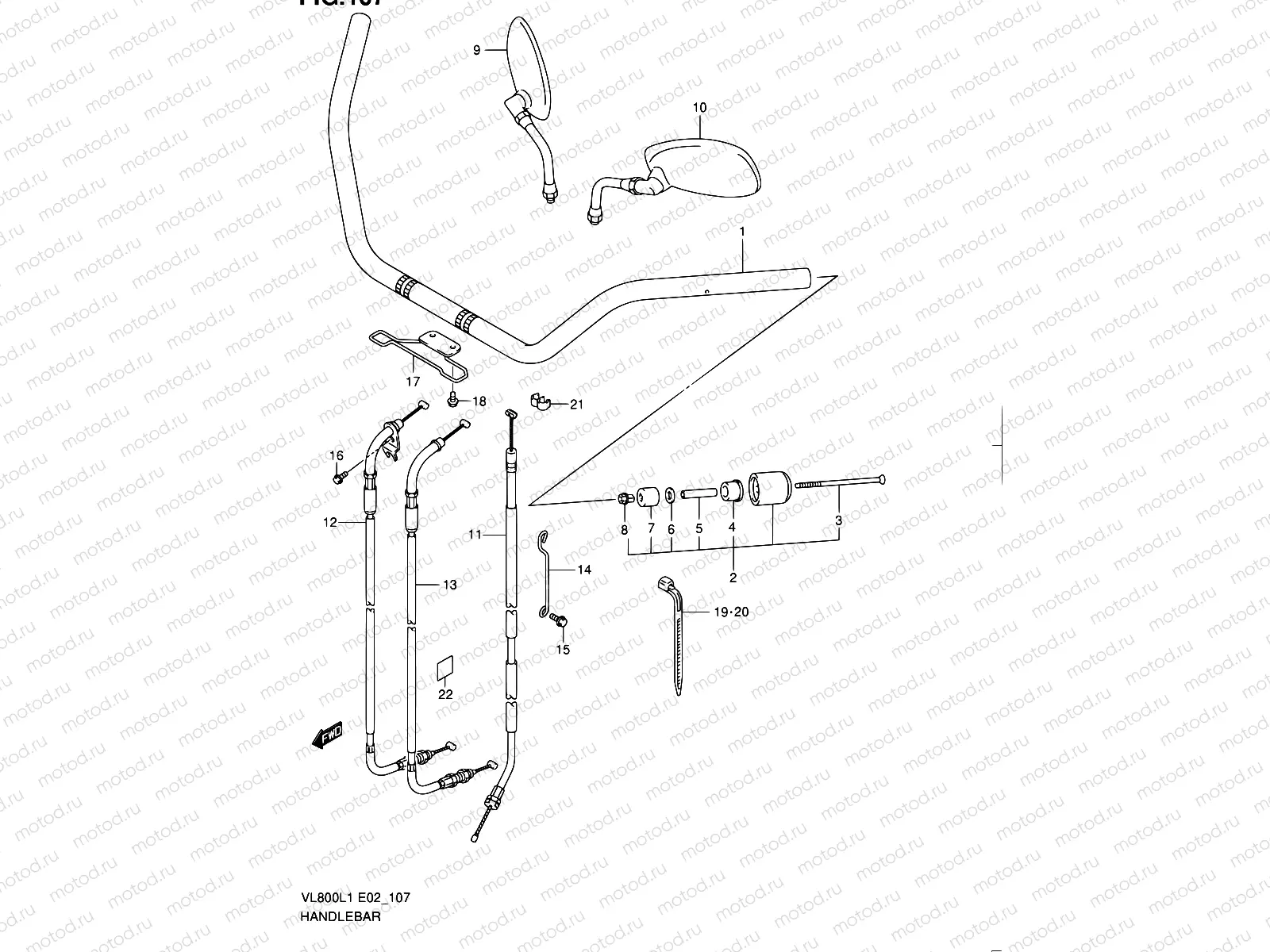

107 - HANDLEBAR (VL800UEL1 E19)

107 - HANDLEBAR (VL800UEL1 E19)

Например: 56111-41F30

1

56111-41F30

HANDLEBAR

17 087 ₽/шт

2

56200-10892

BALANCER SET,HANDLEBAR

3 315 ₽/шт

3

09127-06017

Болт

187 ₽/шт

4

56272-26D01

EXPANDER,HANDLE BALANCER NO.2

436 ₽/шт

5

56276-17D00

Кольцо/шайба

194 ₽/шт

6

09160-06131

Шайба

81 ₽/шт

7

56272-10G10

EXPANDER,HANDLE BALANCER

210 ₽/шт

8

56273-10G10

Гайка

436 ₽/шт

9

56500-39H00

MIRROR ASSY,RR VIEW,R

10 343 ₽/шт

10

56600-39H00

MIRROR ASSY,RR VIEW,L

10 343 ₽/шт

11

58200-41F30

CABLE ASSY,CLUTCH

4 250 ₽/шт

12

58300-43H01

Cable Assy,throttle No.1

2 678 ₽/шт

13

58300-43H11

Cable Assy,throttle No.2

2 307 ₽/шт

14

58626-41F01

Переходник

426 ₽/шт

15

01550-0612A

БОЛТ КУЗОВНОЙ, МЕТАЛЛ

81 ₽/шт

16

01550-0616A

БОЛТ

81 ₽/шт

17

58620-41F00

Направляющая кабеля

1 193 ₽/шт

18

01550-0612B

БОЛТ

81 ₽/шт

19

09407-22403

CLAMP(L:220)

1 370 ₽/шт

20

09407-30401

CLAMP(L:300)

2 740 ₽/шт

21

09408-00244

CLIP

162 ₽/шт

22

87873-56K50

PROTECTOR

493 ₽/шт
